SAFETY ELITE

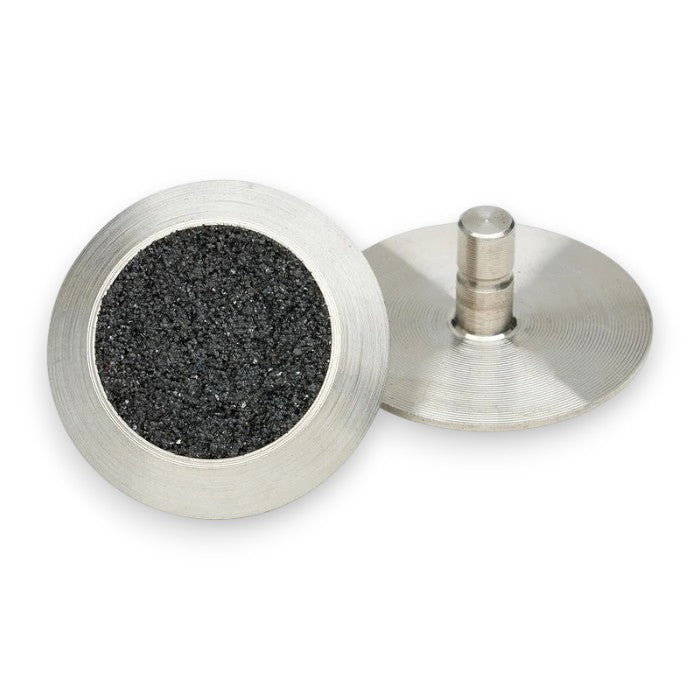

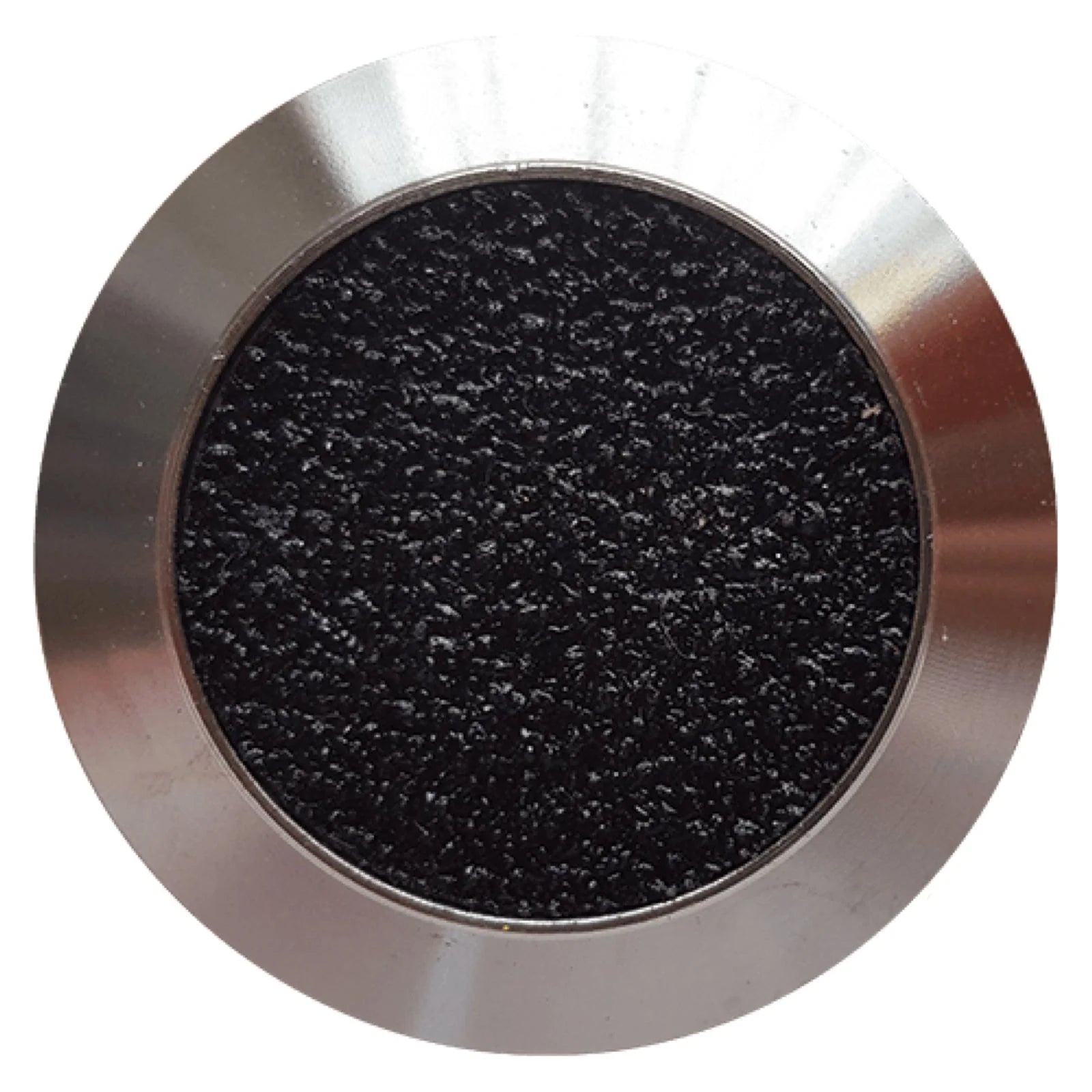

Tactile Indicator Stud – Stainless Steel with Black Carborundum Insert

Tactile Indicator Stud – Stainless Steel with Black Carborundum Insert

SF161BLA

GST Exempt
$1.19 AUD
$2.00 AUD $1.19 AUD
On Sale Sold out
Shipping can be calculated in cart page Shipping Policy

The Tactile Indicator Stud – Stainless Steel with Black Carborundum Insert combines durability with enhanced visibility. Crafted from 316 marine-grade stainless steel, these studs ensure long-term performance in both indoor and outdoor settings. The black carborundum insert provides a contrasting tactile and visual surface, improving detection for individuals with visual impairments.

Engineered to meet AS/NZS 1428.4.1:2021 standards, these studs are suitable for a wide range of environments, from public transit platforms to commercial entrances. Their single stud design with a 6mm drill hole ensures secure and straightforward installation.

Key Features:

Manufactured from 316 marine-grade stainless steel.

Black carborundum insert for increased contrast and visibility.

Complies with AS/NZS 1428.4.1:2021 accessibility standards.

Dimensions: 35mm diameter, 5mm height, 13mm shaft.

6mm drill hole for single-stud installation.

Suitable for both indoor and outdoor environments.

Specifications:

Material: 316 Stainless Steel + Black Carborundum Insert

Head Diameter: 35mm

Head Height: 5mm

Shaft Length: 13mm

Drill Hole: 6mm

Weight: 25g per stud

Coverage: 400 studs per m² (e.g. 12.5 m² = 5000 studs)

Applications:

Public Transit Platforms – improve visibility and safety.

Pedestrian Crossings – enhance guidance at intersections.

Commercial Entrances – durable accessibility solution for retail.

Urban Planning Projects – integrate into city walkways and plazas.

📄 Download Data Sheet (PDF)

❓ Product FAQs Click to expand ⌄
What are these tactile indicator studs used for?

These tactile indicator studs are used to create tactile ground surface indicators for accessibility, pedestrian guidance and hazard warning. They are commonly installed near stairs, ramps, building entrances, walkways, crossings, platforms and public access areas where a raised surface warning is needed for people who are blind or vision impaired.

Why choose individual tactile studs instead of tactile mats?

Individual tactile studs are often chosen for projects that need a more permanent, durable and professional finish. They can be installed in a set layout to suit the site requirements and are commonly used on concrete, tile, stone or other suitable hard surfaces. Tactile mats may be preferred for faster installation, while individual studs usually provide a cleaner architectural finish.

What should I check before installing tactile indicator studs?

Before installation, check the surface material, fixing method, spacing, layout, slip resistance and relevant Australian accessibility requirements. The installation surface should be clean, stable and suitable for the selected fixing method. For commercial or public access projects, it is important to confirm the required layout and compliance requirements before ordering or installation.

🛡️ Product Warranty Click to expand ⌄
This product comes with a 1-year manufacturer warranty against manufacturing defects. The warranty does not cover damage caused by misuse, improper installation, normal wear and tear, or accidental damage.
View full details
