Tactile Indicator Stud – Stainless Steel, 3M Adhesive Back, 35mm

Tactile Indicator Stud – Stainless Steel, 3M Adhesive Back, 35mm

SF1043M

GST Exempt
$0.99 AUD
$2.50 AUD $0.99 AUD
On Sale Sold out
Shipping can be calculated in cart page Shipping Policy

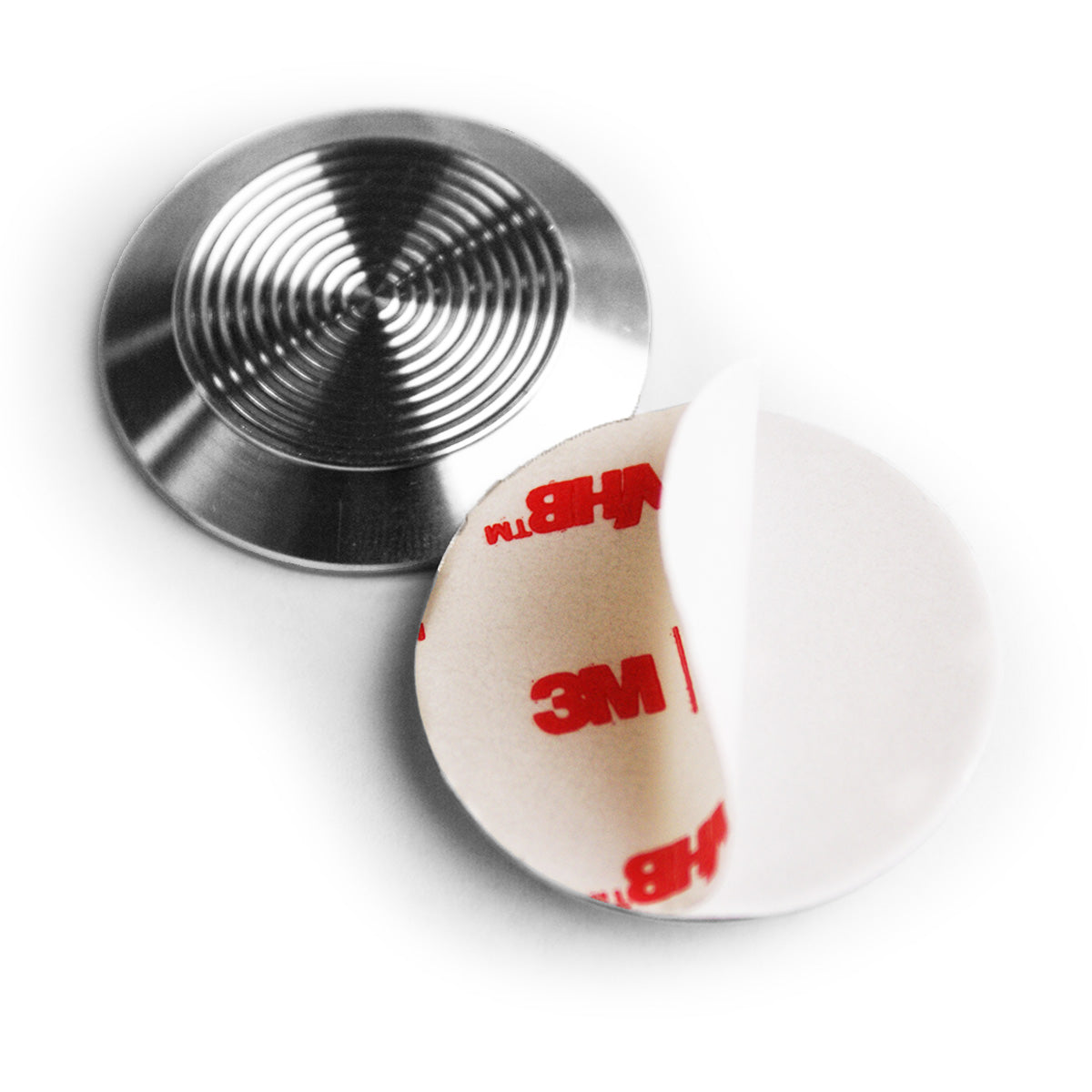

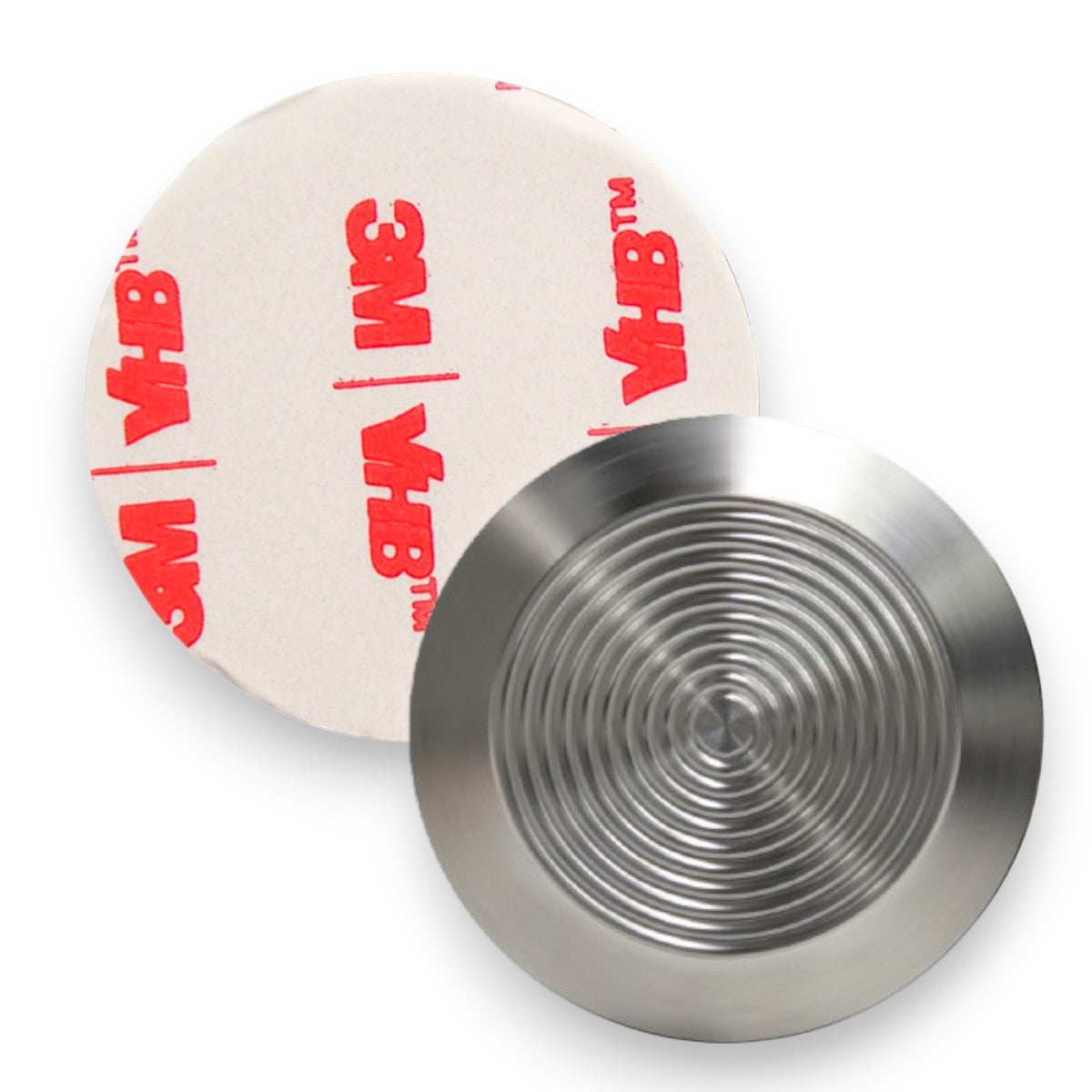

The Tactile Indicator Stud – Stainless Steel with 3M Adhesive simplifies accessibility solutions with its easy peel-and-stick design. Manufactured from 316 marine-grade stainless steel, it provides excellent durability and corrosion resistance, while the 3M adhesive flat back eliminates the need for drilling or special tools.

This stud is ideal for temporary projects, indoor navigation, and public spaces where quick installation is required. Despite its easy application, it complies with AS/NZS 1428.4.1:2021, ensuring it meets accessibility standards.

Key Features:

316 marine-grade stainless steel – strong and corrosion-resistant.

3M adhesive backing – fast peel-and-stick installation.

Flat-back design – no drilling or special tools required.

AS/NZS 1428.4.1:2021 compliant.

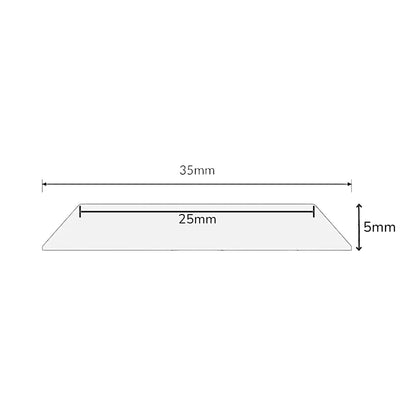

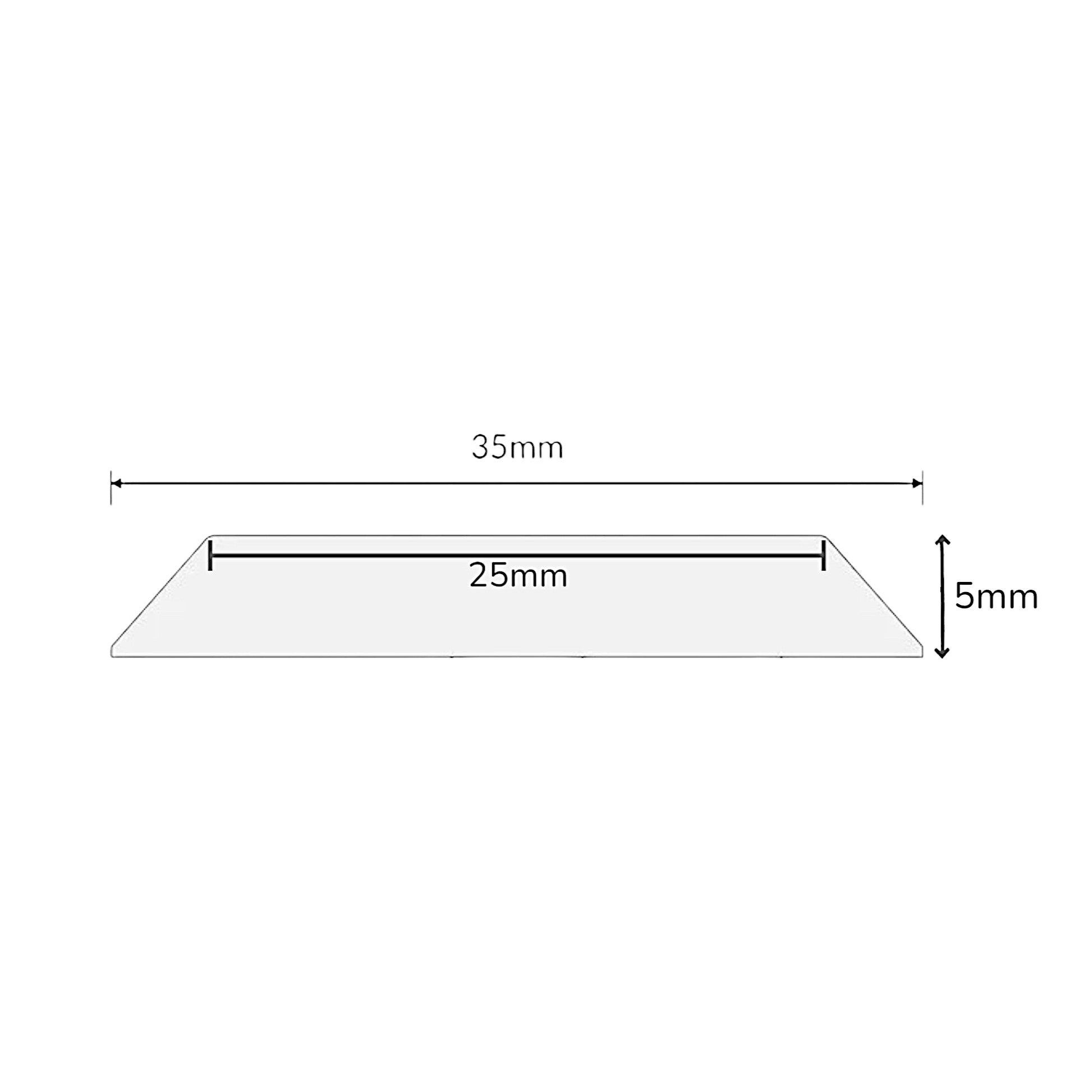

Dimensions: 35mm diameter, 5mm height.

Ideal for both indoor and outdoor environments.

Specifications:

Material: 316 Stainless Steel

Finish: Flat back with 3M adhesive

Diameter: 35mm

Height: 5mm

Installation: Peel-and-stick adhesive (no drilling)

Coverage: 400 studs per m² (e.g. 12.5 m² = 5000 studs)

Applications:

Temporary Installations – exhibitions, events, or short-term accessibility solutions.

Indoor Navigation – shopping centres, offices, and commercial buildings.

Public Spaces – parks, plazas, and lobbies.

Urban Development Projects – quick placement for accessibility compliance.

📄 Download Data Sheet (PDF)

❓ Product FAQs Click to expand ⌄
What are these tactile indicator studs used for?

These tactile indicator studs are used to create tactile ground surface indicators for accessibility, pedestrian guidance and hazard warning. They are commonly installed near stairs, ramps, building entrances, walkways, crossings, platforms and public access areas where a raised surface warning is needed for people who are blind or vision impaired.

Why choose individual tactile studs instead of tactile mats?

Individual tactile studs are often chosen for projects that need a more permanent, durable and professional finish. They can be installed in a set layout to suit the site requirements and are commonly used on concrete, tile, stone or other suitable hard surfaces. Tactile mats may be preferred for faster installation, while individual studs usually provide a cleaner architectural finish.

What should I check before installing tactile indicator studs?

Before installation, check the surface material, fixing method, spacing, layout, slip resistance and relevant Australian accessibility requirements. The installation surface should be clean, stable and suitable for the selected fixing method. For commercial or public access projects, it is important to confirm the required layout and compliance requirements before ordering or installation.

🛡️ Product Warranty Click to expand ⌄
This product comes with a 1-year manufacturer warranty against manufacturing defects. The warranty does not cover damage caused by misuse, improper installation, normal wear and tear, or accidental damage.
