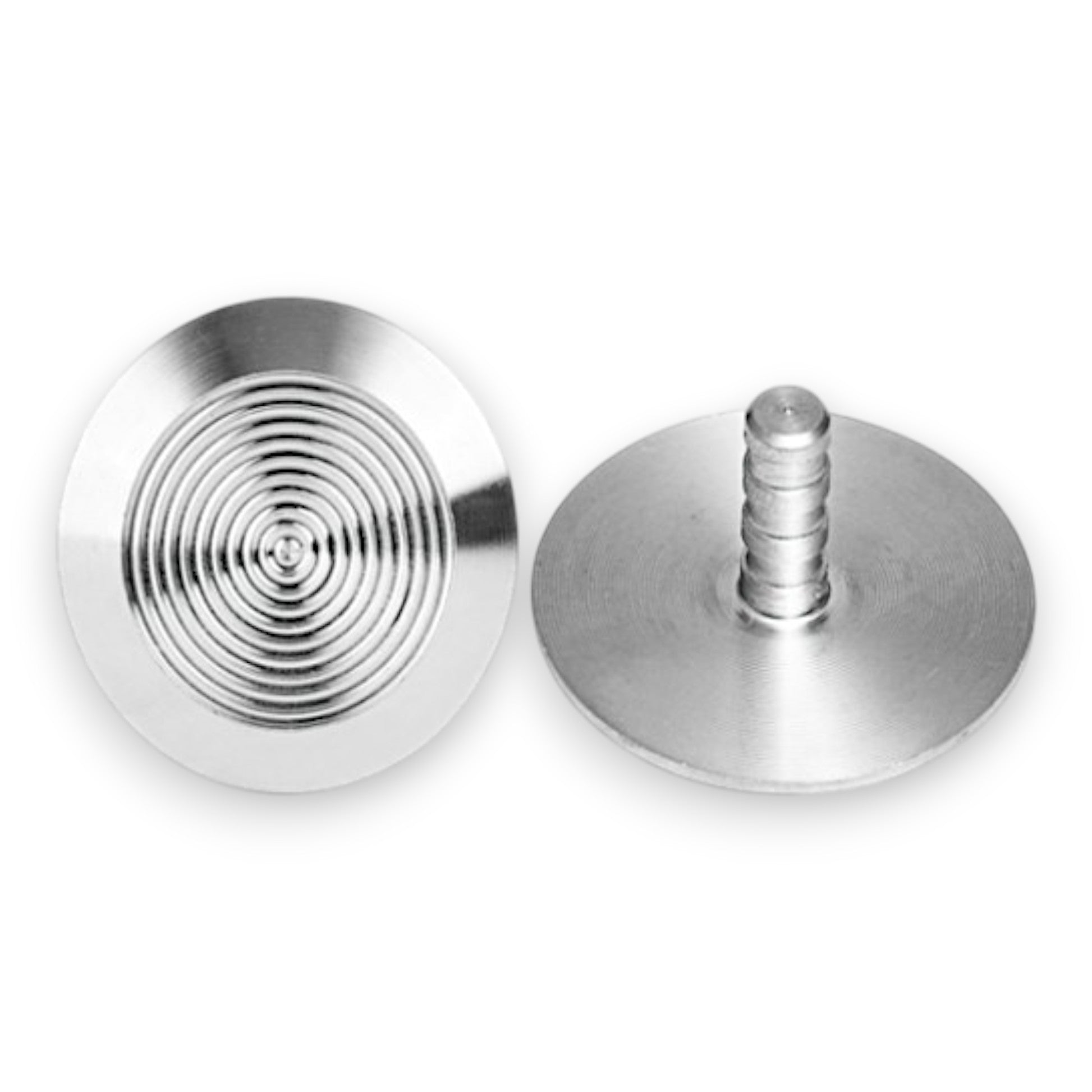

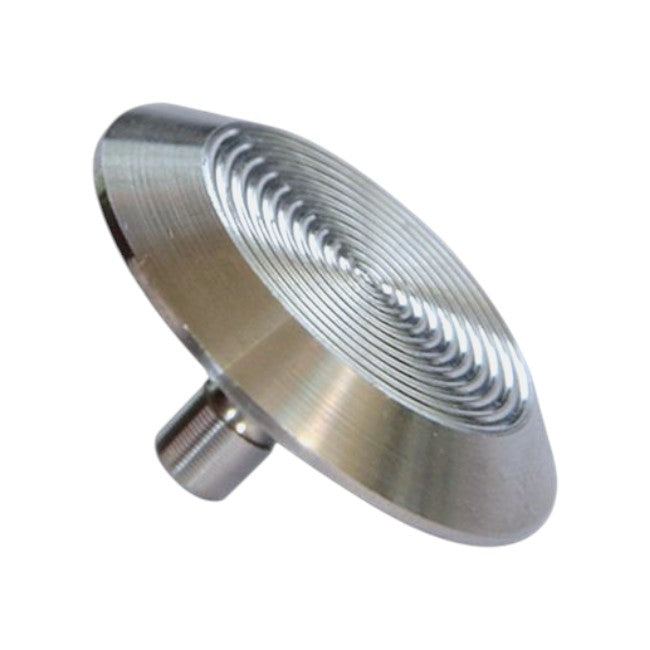

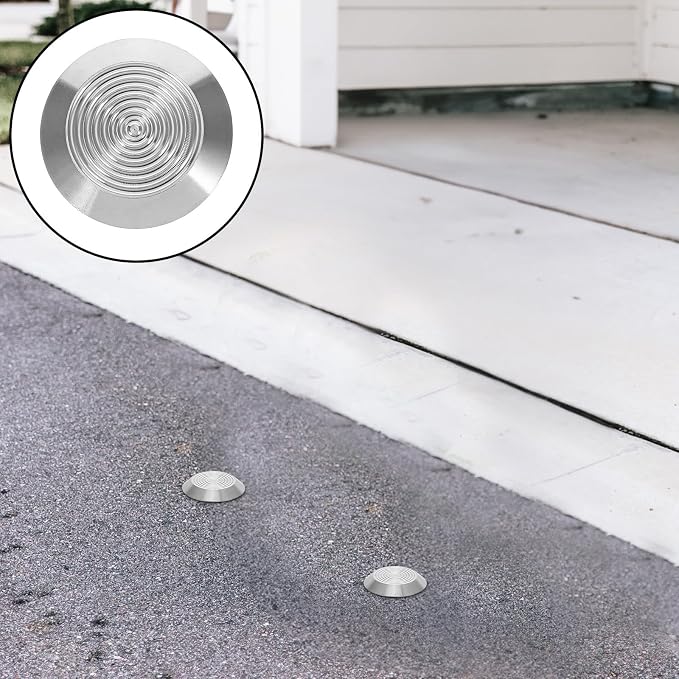

Tactile Indicator Stud – Stainless Steel

The Stainless Steel Tactile Indicator Stud provides lasting accessibility and safety for individuals with visual impairments. Made from 316 marine-grade stainless steel, it offers superior corrosion resistance for both indoor and outdoor use, and complies with AS/NZS 1428.4.1:2021 standards.

Each stud features a single-stud design and is installed using a 6mm drill bit, ensuring secure and straightforward fixing. The 35mm diameter head with 5mm tactile height provides clear guidance underfoot, while the 13mm shaft ensures stability even under heavy pedestrian traffic.

Key Features:

• 316 marine-grade stainless steel – corrosion and weather resistant

• AS/NZS 1428.4.1:2021 compliant

• Single-stud design, installs with 6mm drill bit

• 35mm diameter, 5mm height tactile clarity

• 13mm shaft length for secure fixing

• 400 studs required per m² coverage

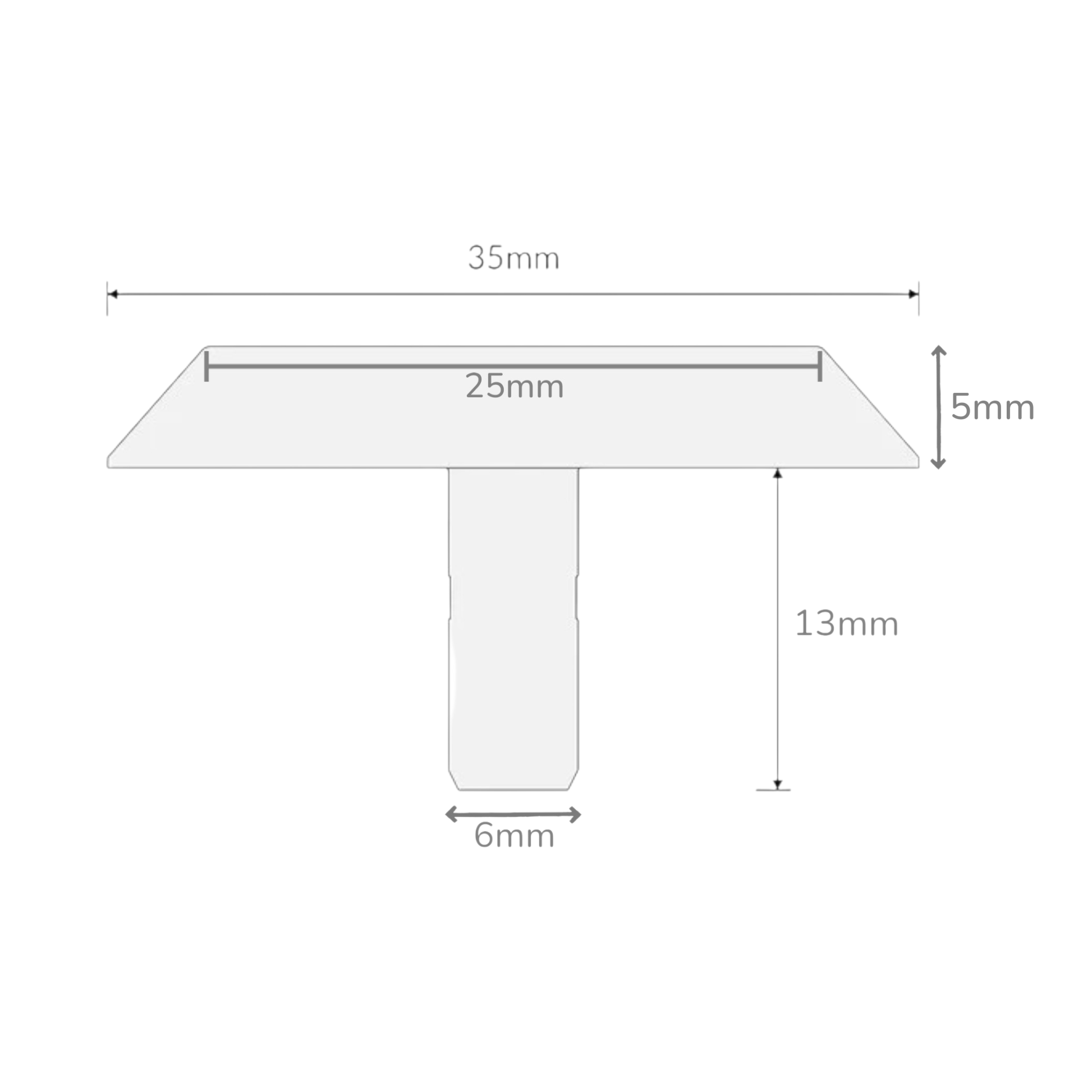

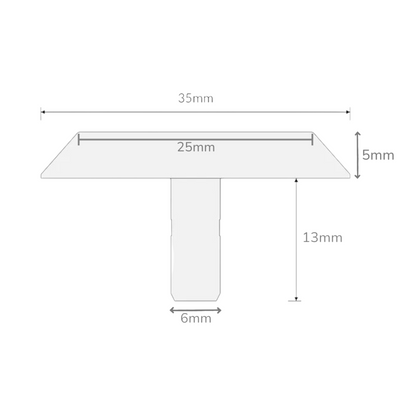

Specifications:

• Material: 316 Stainless Steel

• Head Diameter: 35mm

• Head Height: 5mm

• Shaft Length: 13mm

• Installation: 6mm drill bit required

• Weight: 30g per stud

• Coverage: 400 studs per m² (e.g. 12.5 m² = 5000 studs)

Applications:

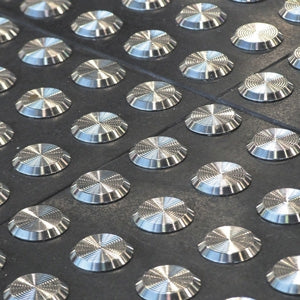

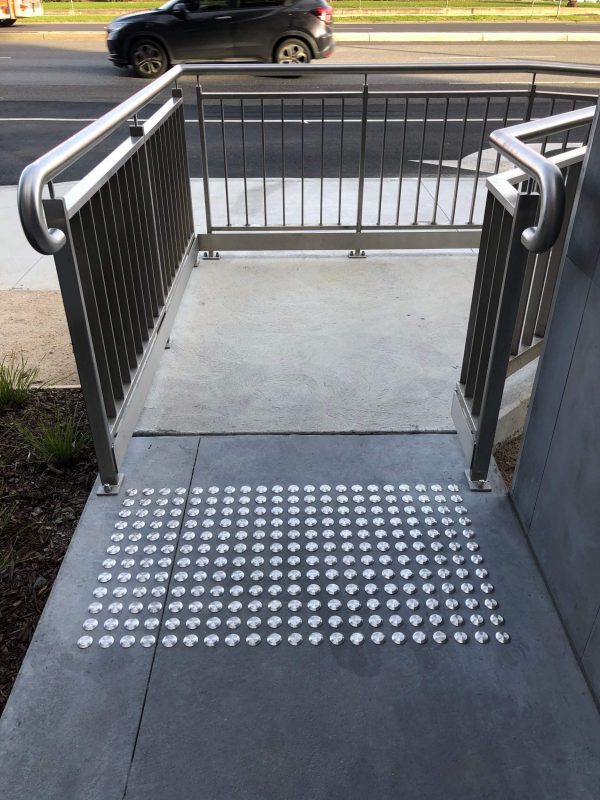

• Public walkways & pedestrian crossings

• Transportation hubs (stations, bus stops, airports)

• Commercial buildings (entrances, lobbies, corridors)

• Outdoor public spaces (parks, plazas, civic areas)
