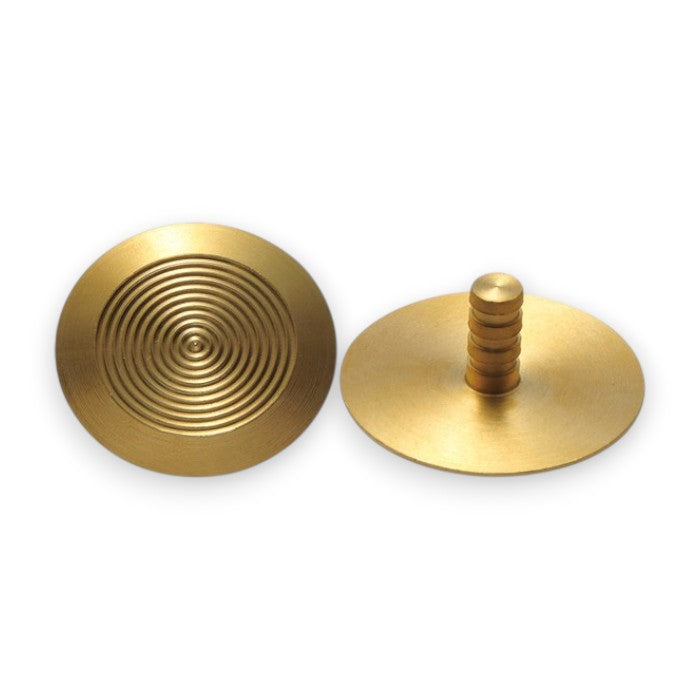

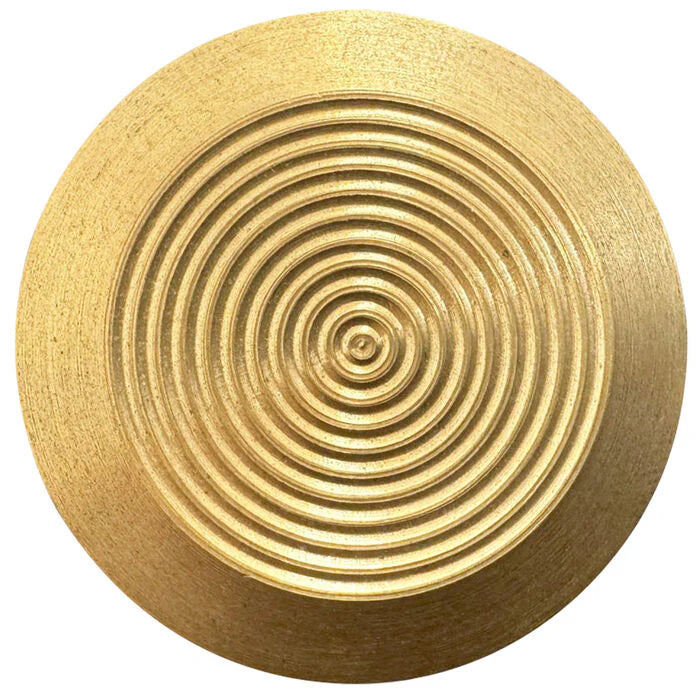

Tactile Indicator Stud – Brass, 35mm

The Tactile Indicator Stud – Brass enhances both safety and accessibility, providing essential tactile guidance for individuals with visual impairments. Precision-engineered from solid brass, this stud offers long-lasting durability while maintaining a refined and discreet appearance, making it suitable for both modern indoor environments and demanding outdoor applications.

Complying with AS/NZS 1428.4.1:2021, it meets strict accessibility standards and is trusted across a wide range of projects, from public walkways and transportation hubs to commercial buildings and urban spaces.

The stud features a single-stud design, installed with a 6mm drill hole, ensuring secure fixing and reliable performance. With a 35mm diameter, 5mm tactile height, and 13mm shaft, it provides clear underfoot detection for effective navigation.

Key Features:

• Solid brass construction – durable and corrosion-resistant.

• AS/NZS 1428.4.1:2021 compliant.

• Single-stud design, 6mm drill hole for installation.

• Dimensions: 35mm diameter, 13mm shaft, 5mm height.

• Discreet design blends with various environments.

• Enhances accessibility for visually impaired individuals.

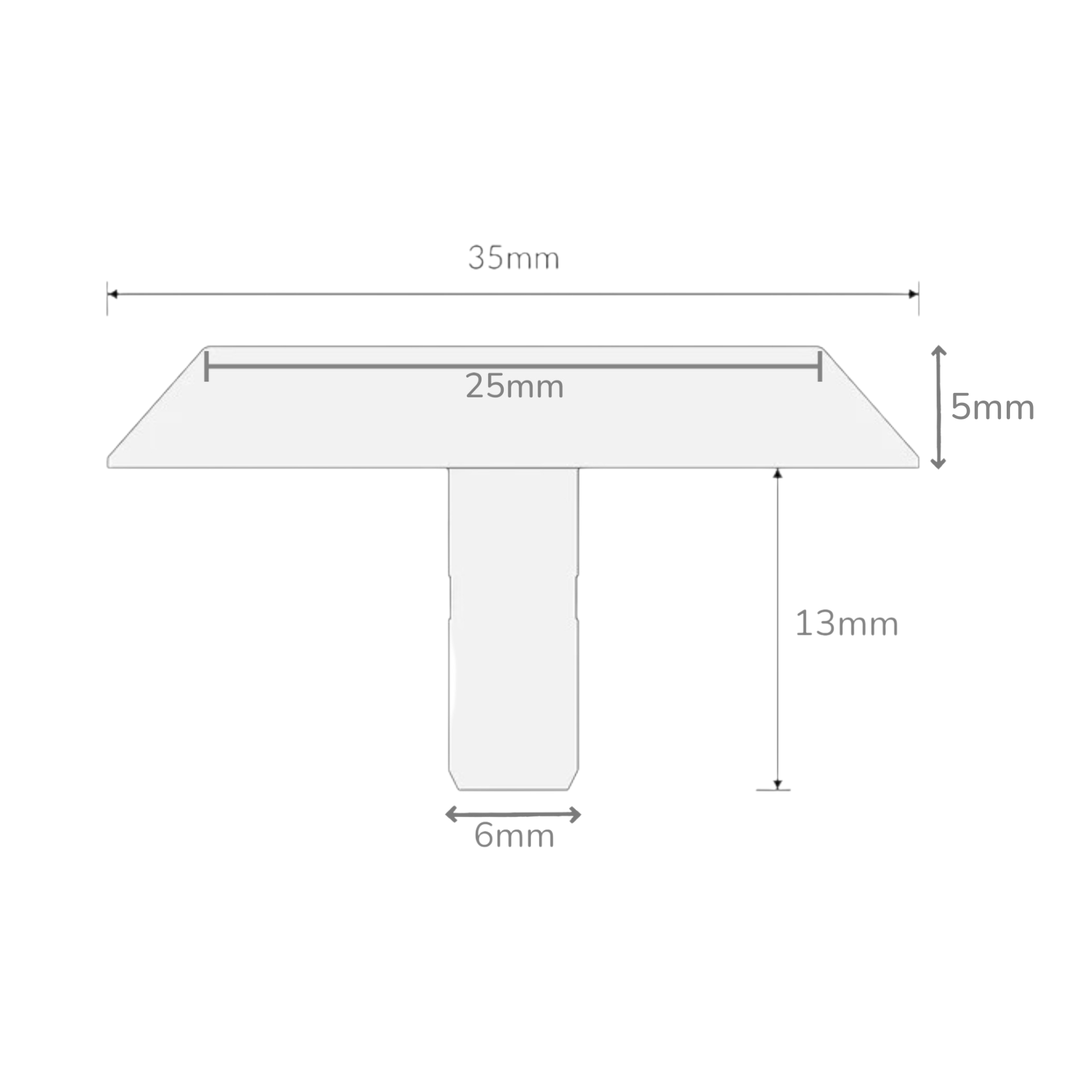

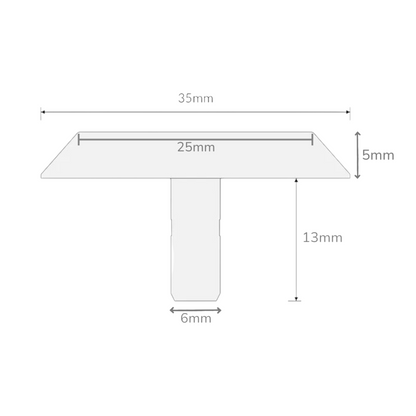

Specifications:

• Material: Solid Brass

• Head Diameter: 35mm

• Head Height: 5mm

• Shaft Length: 13mm

• Drill Hole: 6mm

• Weight: 30g per stud

• Coverage: 400 studs per m² (e.g. 12.5 m² = 5000 studs)

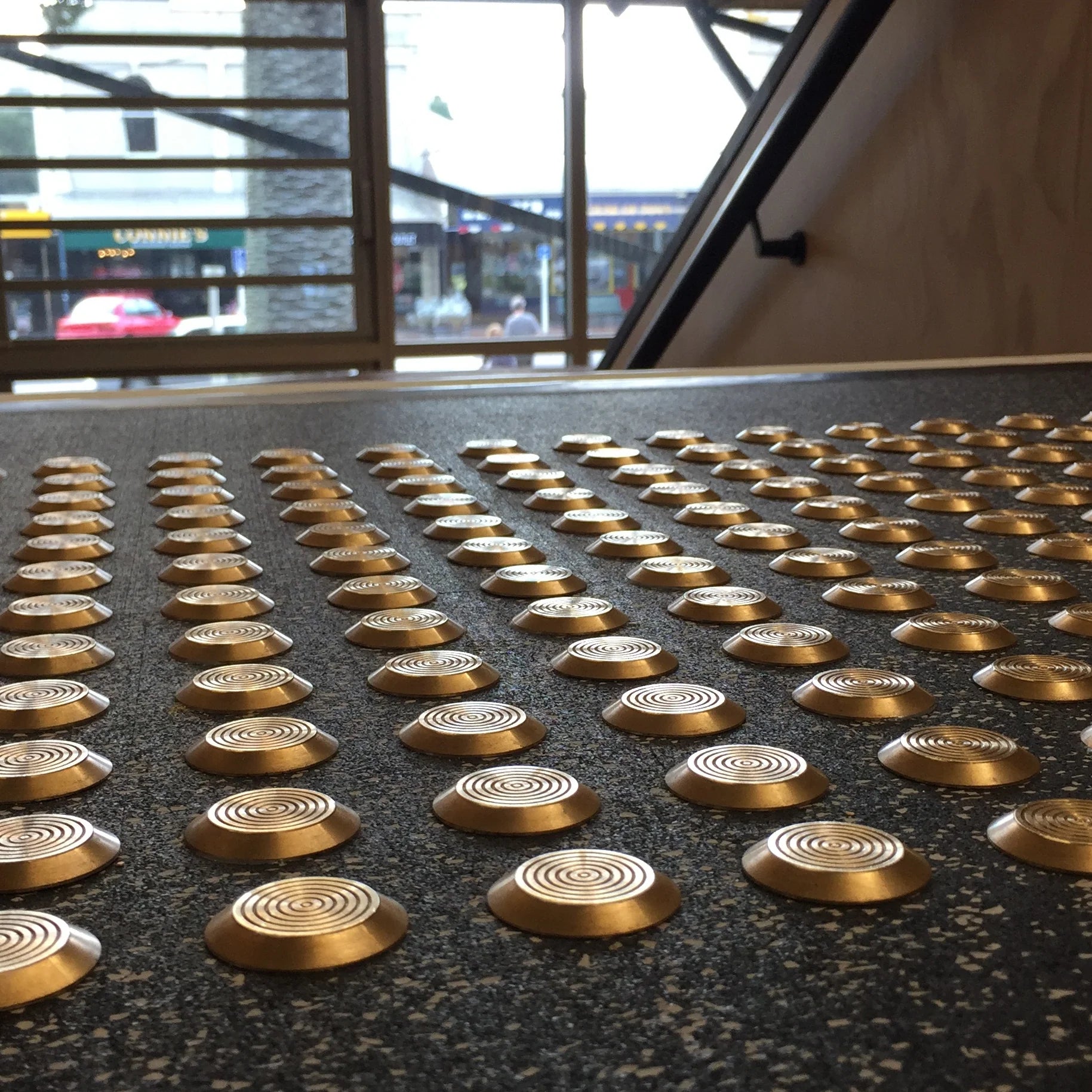

Applications:

• Public Walkways & Crossings – guide safe pedestrian movement.

• Transport Hubs – enhance accessibility at train stations, bus stops, and airports.

• Commercial Buildings – improve safety in entrances, lobbies, and corridors.

• Outdoor Urban Spaces – parks, plazas, and civic areas.
