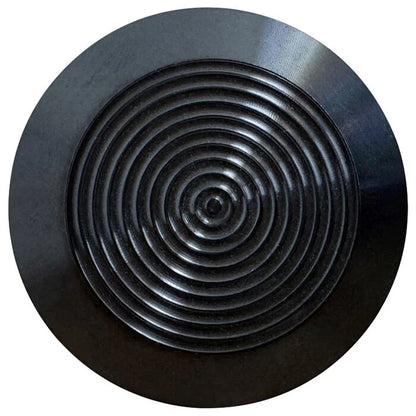

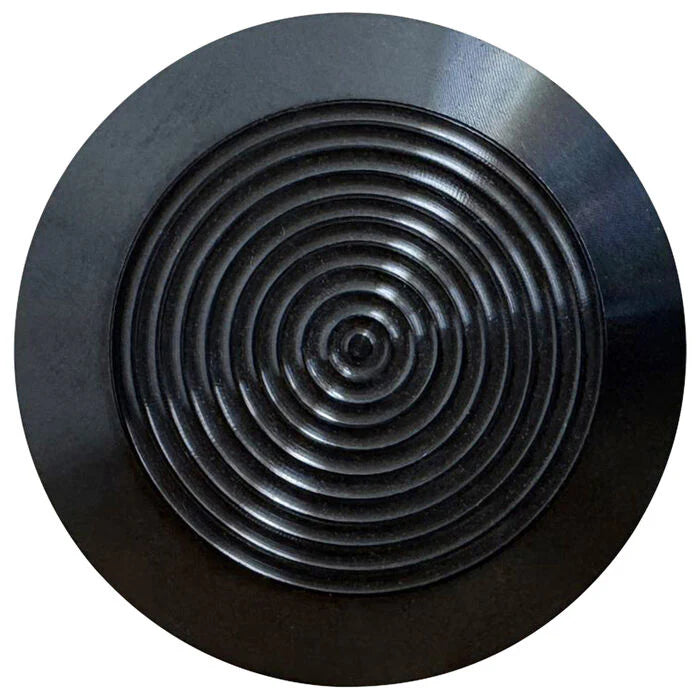

Tactile Indicator Stud – Black Stainless Steel, 35mm

Tactile Indicator Stud – Black Stainless Steel, 35mm

SF112BLA

GST Exempt
$1.69 AUD
$2.90 AUD $1.69 AUD
On Sale Sold out
Shipping can be calculated in cart page Shipping Policy

The Black Stainless Steel Tactile Indicator Stud provides both durability and modern aesthetics, making it a preferred choice for projects where functionality and design must coexist. Manufactured from 316 marine-grade stainless steel with a black finish, these studs are built to withstand environmental exposure while maintaining a sleek, architectural appearance.

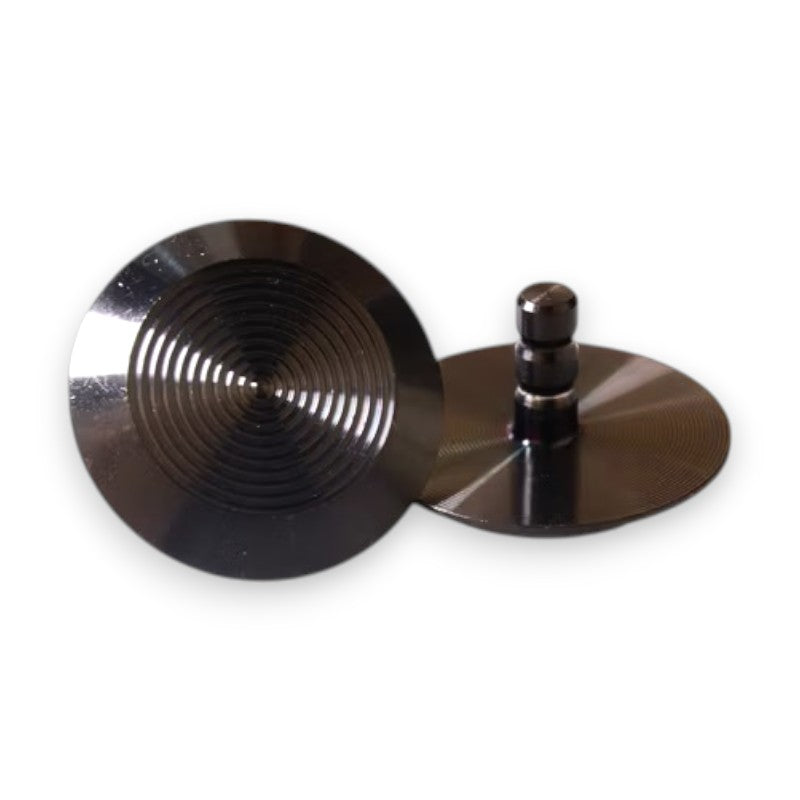

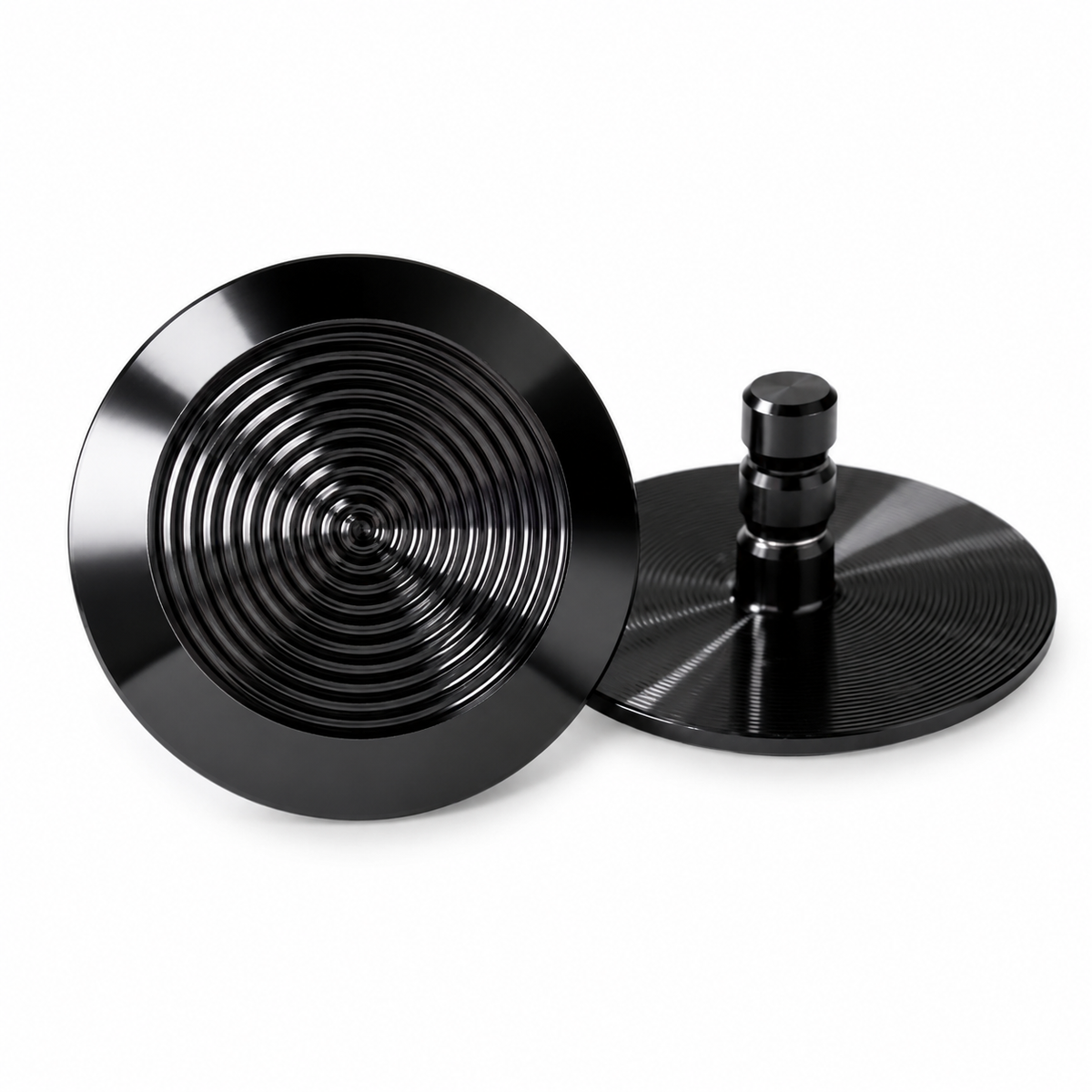

Designed to comply with AS/NZS 1428.4.1:2021, they ensure accessibility for individuals with visual impairments. With a 35mm head diameter, 5mm height for tactile clarity, and a 13mm shaft, each stud provides secure guidance underfoot. Installation is straightforward using a 6mm drill bit for single-stud fixing.

Key Features:

316 stainless steel with black finish – strong and corrosion-resistant.

AS/NZS 1428.4.1:2021 compliant.

Sleek, modern appearance – ideal for stylish spaces.

35mm diameter, 5mm height, 13mm shaft.

6mm drill hole installation.

Suitable for indoor and outdoor applications.

Specifications:

Material: 316 Black Stainless Steel

Head Diameter: 35mm

Head Height: 5mm

Shaft Length: 13mm

Installation: 6mm drill bit required

Weight: 30g per stud

Coverage: 400 studs per m² (e.g. 12.5 m² = 5000 studs)

Applications:

Architectural Design – integrate into modern interiors and exteriors.

Retail Environments – maintain a stylish look while ensuring safety.

Commercial Buildings – accessible yet visually appealing lobbies & walkways.

Urban Planning Projects – enhance accessibility in public spaces with a refined finish.

📄 Download Data Sheet (PDF)

❓ Product FAQs Click to expand ⌄
What are these tactile indicator studs used for?

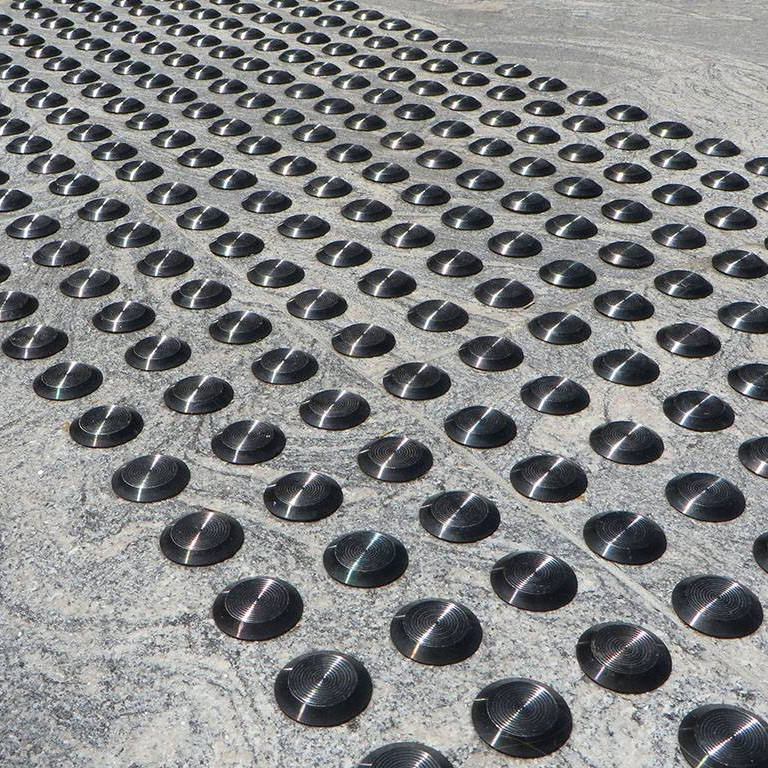

These tactile indicator studs are used to create tactile ground surface indicators for accessibility, pedestrian guidance and hazard warning. They are commonly installed near stairs, ramps, building entrances, walkways, crossings, platforms and public access areas where a raised surface warning is needed for people who are blind or vision impaired.

Why choose individual tactile studs instead of tactile mats?

Individual tactile studs are often chosen for projects that need a more permanent, durable and professional finish. They can be installed in a set layout to suit the site requirements and are commonly used on concrete, tile, stone or other suitable hard surfaces. Tactile mats may be preferred for faster installation, while individual studs usually provide a cleaner architectural finish.

What should I check before installing tactile indicator studs?

Before installation, check the surface material, fixing method, spacing, layout, slip resistance and relevant Australian accessibility requirements. The installation surface should be clean, stable and suitable for the selected fixing method. For commercial or public access projects, it is important to confirm the required layout and compliance requirements before ordering or installation.

🛡️ Product Warranty Click to expand ⌄
This product comes with a 1-year manufacturer warranty against manufacturing defects. The warranty does not cover damage caused by misuse, improper installation, normal wear and tear, or accidental damage.
