Tactile Indicator Plate Stainless Steel — Black Carb 300x600mm

Tactile Indicator Plate Stainless Steel — Black Carb 300x600mm

SF702

GST Exempt
$144.00 AUD
$195.00 AUD $144.00 AUD
On Sale Sold out
Shipping can be calculated in cart page Shipping Policy

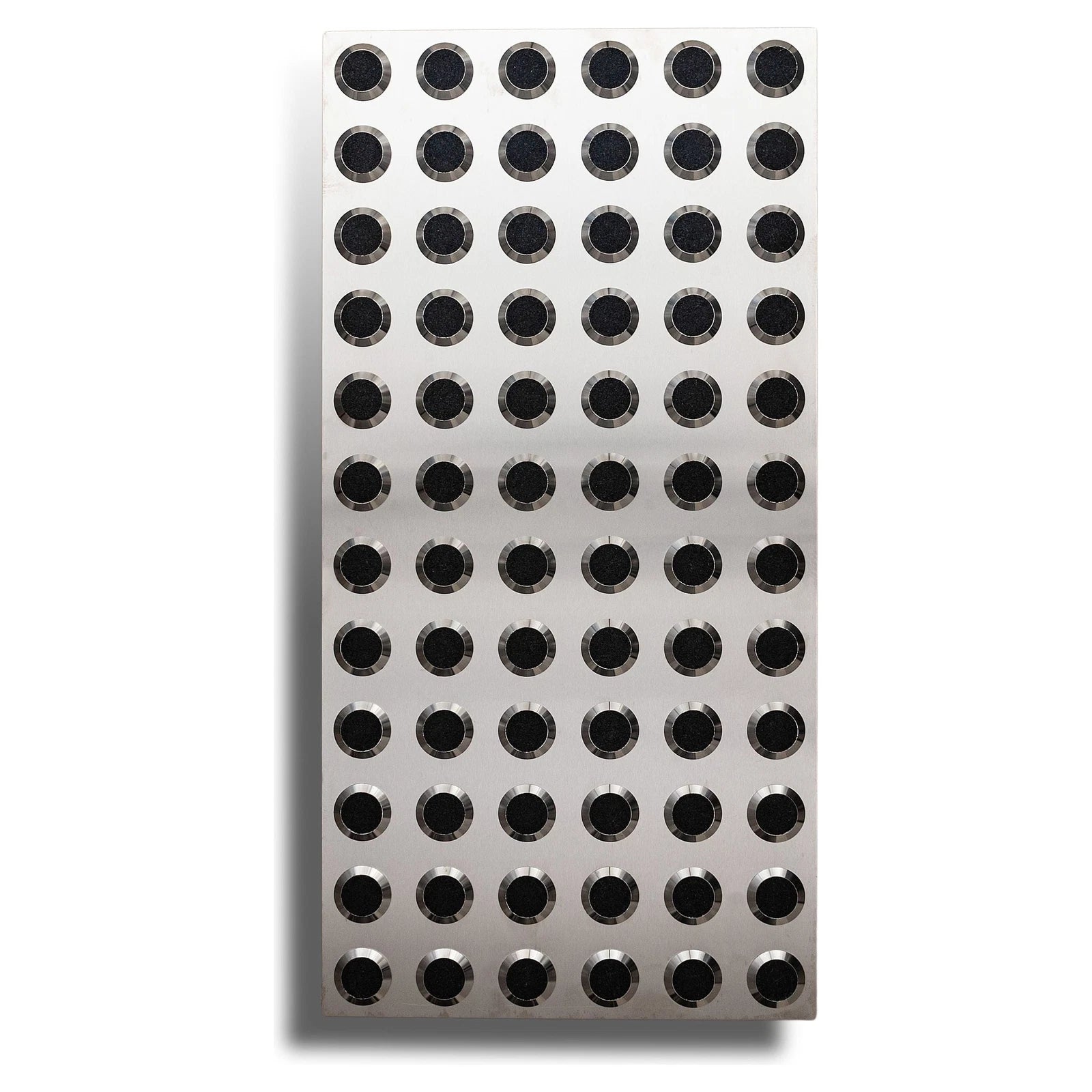

The Tactile Indicator Plate – Stainless Steel with durable carborundum inserts 300x600mm is designed for projects requiring broader coverage and fewer joins compared to smaller tiles. Manufactured from 316 marine-grade stainless steel, it combines modern style with long-term performance.

This plate is P5 slip rated and fully AS/NZS 1428.4:2009 compliant, making it suitable for both indoor and outdoor use in high-traffic public areas. With 6 countersunk fixing points, it mounts flush to the surface for a professional finish and reliable installation.

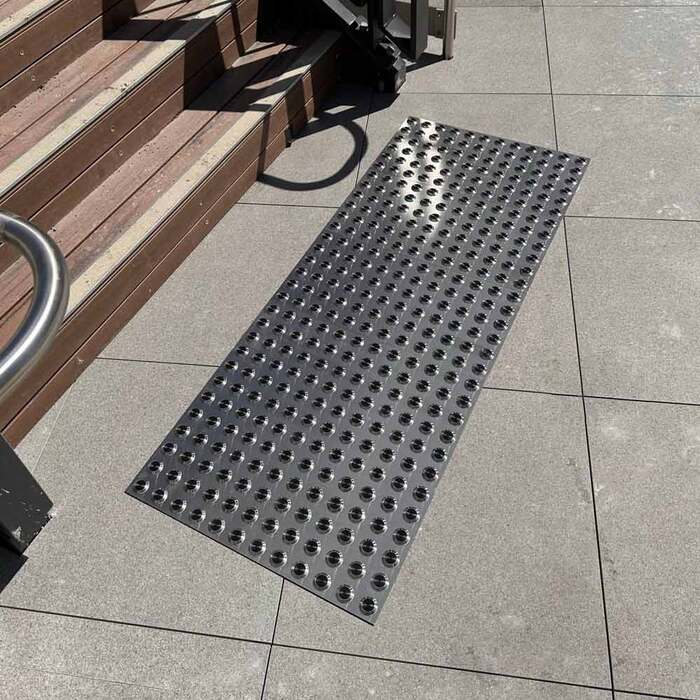

At 300x600mm, each plate reduces installation time by covering a larger area, making it ideal for stair landings, ramps, public transport platforms, and commercial entries.

Key Features:

Large 300x600mm plate for efficient coverage.

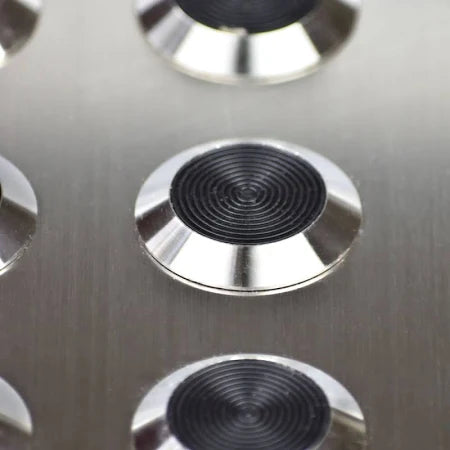

316 stainless steel + carborundum inserts for durability and visibility.

P5 slip rating for maximum traction.

6 countersunk holes – fast, flush mounting.

Heavy-duty design for long-term indoor/outdoor use.

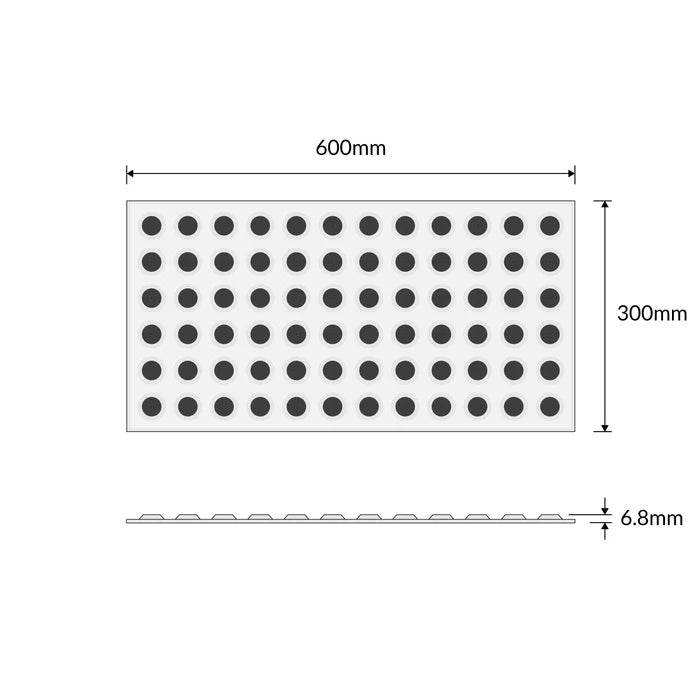

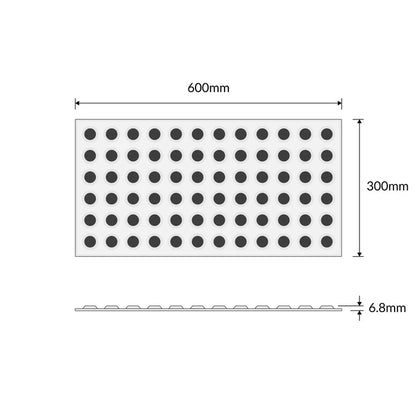

Specifications:

Material: 316 Stainless Steel + Carborundum Insert

Size: 300 x 600mm

Plate Thickness: 1.75mm

Raised Dome: 5mm

Total Thickness: 6.75mm

Weight: 6kg per plate

Fixings: 6 countersunk holes per tile

Applications:

Transport hubs – large platforms and concourses.

Public walkways – plazas, pathways, and crossings.

Stair landings & ramps – hazard guidance for safety.

Commercial entries – offices, shopping centres, and public buildings.

📄 Download Data Sheet (PDF)

❓ Product FAQs Click to expand ⌄
What are stainless steel tactile indicator plates used for?

Stainless steel tactile indicator plates are used to provide a raised hazard warning surface for accessibility and pedestrian safety. They are commonly installed near stairs, ramps, entrances, walkways, crossings, platforms and public access areas where tactile ground surface indicators are required for people who are blind or vision impaired.

When should I choose tactile indicator plates instead of individual studs or mats?

Tactile indicator plates are a practical option when you want a pre-formed panel with consistent stud spacing and a durable metal finish. They can be faster to position than individual studs and provide a more solid, long-lasting finish than adhesive mats. They are suitable for commercial, public access and workplace projects where durability, appearance and installation consistency are important.

What should I check before installing tactile indicator plates?

Before installation, check the surface material, fixing method, plate layout, slip resistance and relevant Australian accessibility requirements. The installation area should be clean, stable and suitable for the selected fixing method. For public or commercial access projects, confirm the required placement and compliance requirements before ordering or installation.

🛡️ Product Warranty Click to expand ⌄
This product comes with a 1-year manufacturer warranty against manufacturing defects. The warranty does not cover damage caused by misuse, improper installation, normal wear and tear, or accidental damage.
