Tactile Indicator Plate – Stainless Steel 300x600mm
Tactile Indicator Plate – Stainless Steel 300x600mm
SKU:SF701
Couldn't load pickup availability
The Tactile Indicator Plate – Stainless Steel 300x600mm is designed for projects requiring broader coverage and fewer joins compared to smaller tiles. Manufactured from 316 marine-grade stainless steel, it combines modern style with long-term performance.
This plate is P5 slip rated and fully AS/NZS 1428.4:2009 compliant, making it suitable for both indoor and outdoor use in high-traffic public areas. With 6 countersunk fixing points, it mounts flush to the surface for a professional finish and reliable installation.
At 300x600mm, each plate reduces installation time by covering a larger area, making it ideal for stair landings, ramps, public transport platforms, and commercial entries.
Key Features:
Large 300x600mm plate for efficient coverage.
316 stainless steel for durability and visibility.
P5 slip rating for maximum traction.

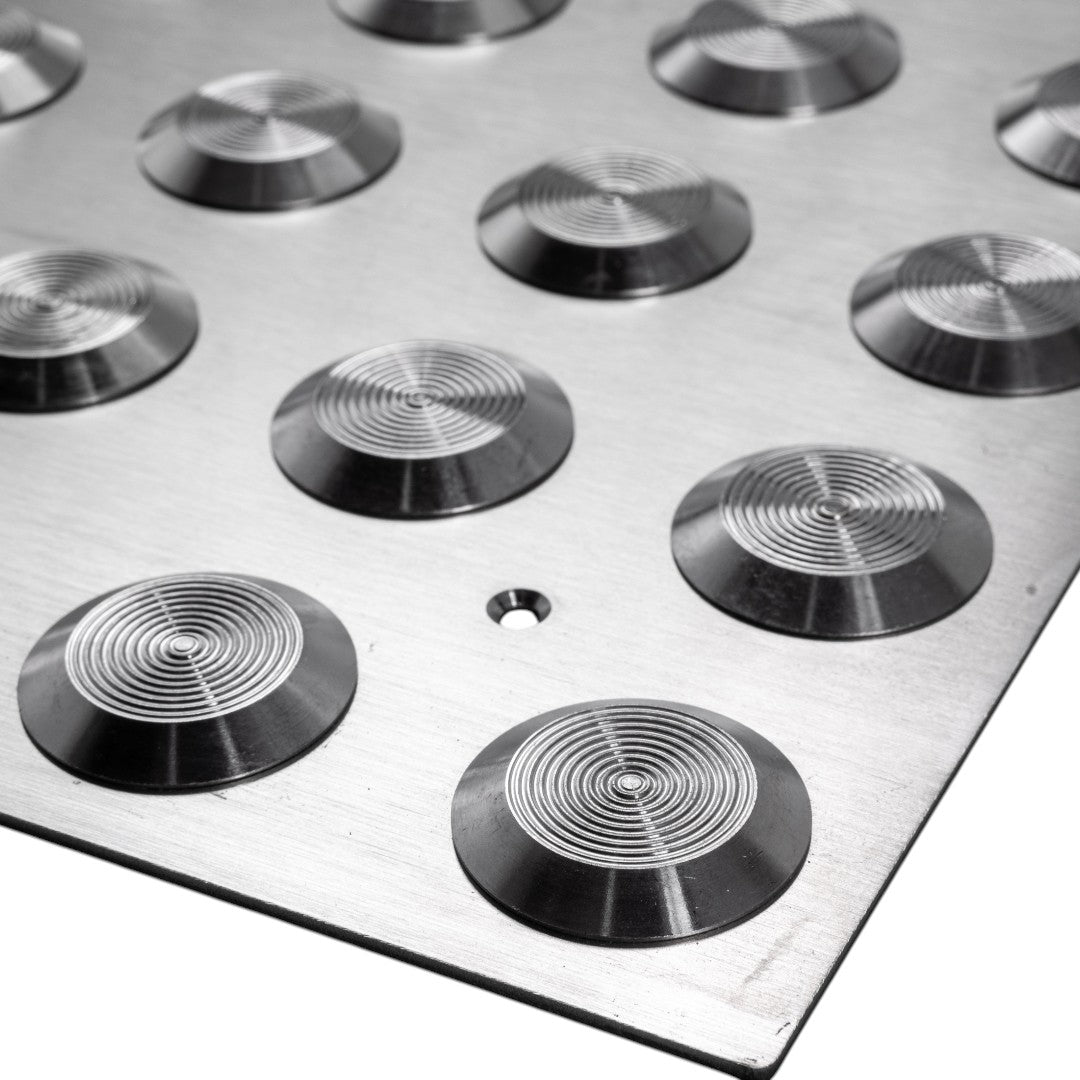

6 countersunk holes – fast, flush mounting.
Heavy-duty design for long-term indoor/outdoor use.

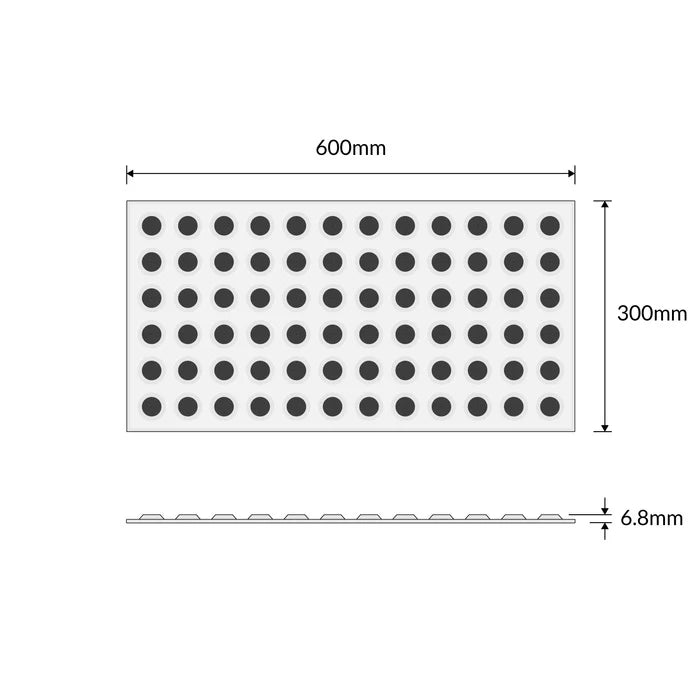

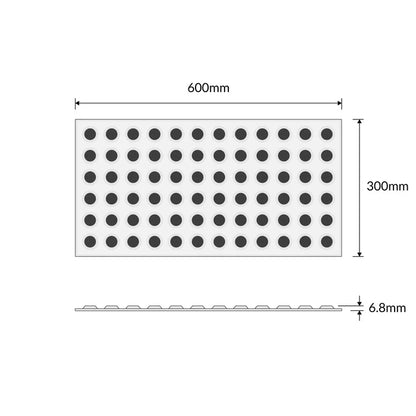

Specifications:
Material: 316 Stainless Steel
Size: 300 x 600mm
Plate Thickness: 1.75mm
Raised Dome: 5mm
Total Thickness: 6.75mm
Weight: 6kg per plate
Fixings: 6 included per tile
Applications:
Transport hubs – large platforms and concourses.
Public walkways – plazas, pathways, and crossings.

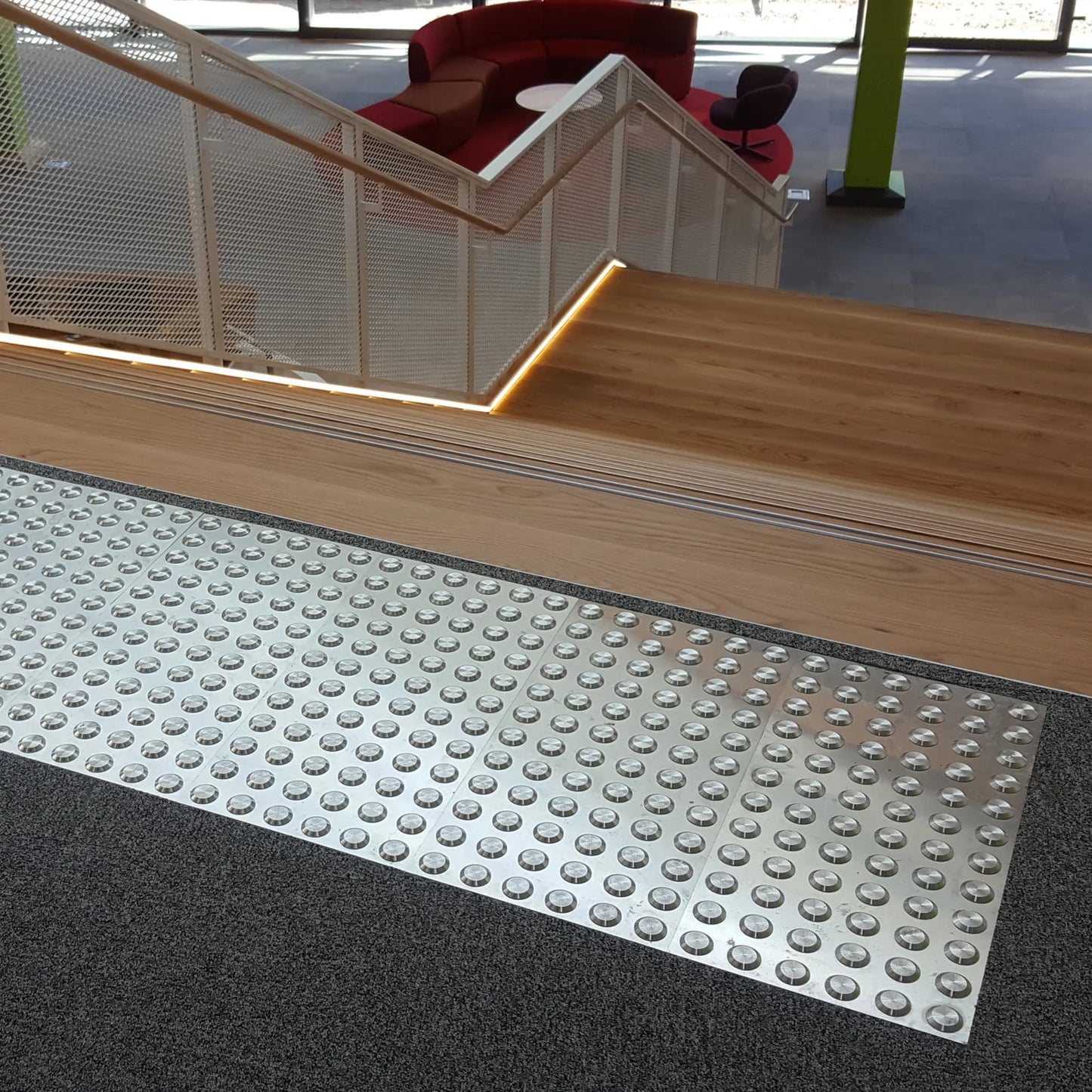

Stair landings & ramps – hazard guidance for safety.
Commercial entries – offices, shopping centres, and public buildings.
❓ Product FAQs Click to expand ⌄
Stainless steel tactile indicator plates are used to provide a raised hazard warning surface for accessibility and pedestrian safety. They are commonly installed near stairs, ramps, entrances, walkways, crossings, platforms and public access areas where tactile ground surface indicators are required for people who are blind or vision impaired.
Tactile indicator plates are a practical option when you want a pre-formed panel with consistent stud spacing and a durable metal finish. They can be faster to position than individual studs and provide a more solid, long-lasting finish than adhesive mats. They are suitable for commercial, public access and workplace projects where durability, appearance and installation consistency are important.
Before installation, check the surface material, fixing method, plate layout, slip resistance and relevant Australian accessibility requirements. The installation area should be clean, stable and suitable for the selected fixing method. For public or commercial access projects, confirm the required placement and compliance requirements before ordering or installation.
