SAFETY ELITE
Tactile Indicator Plate – Stainless Steel 300x300mm, P5 Slip Rated
Tactile Indicator Plate – Stainless Steel 300x300mm, P5 Slip Rated
SKU:SF720
Couldn't load pickup availability

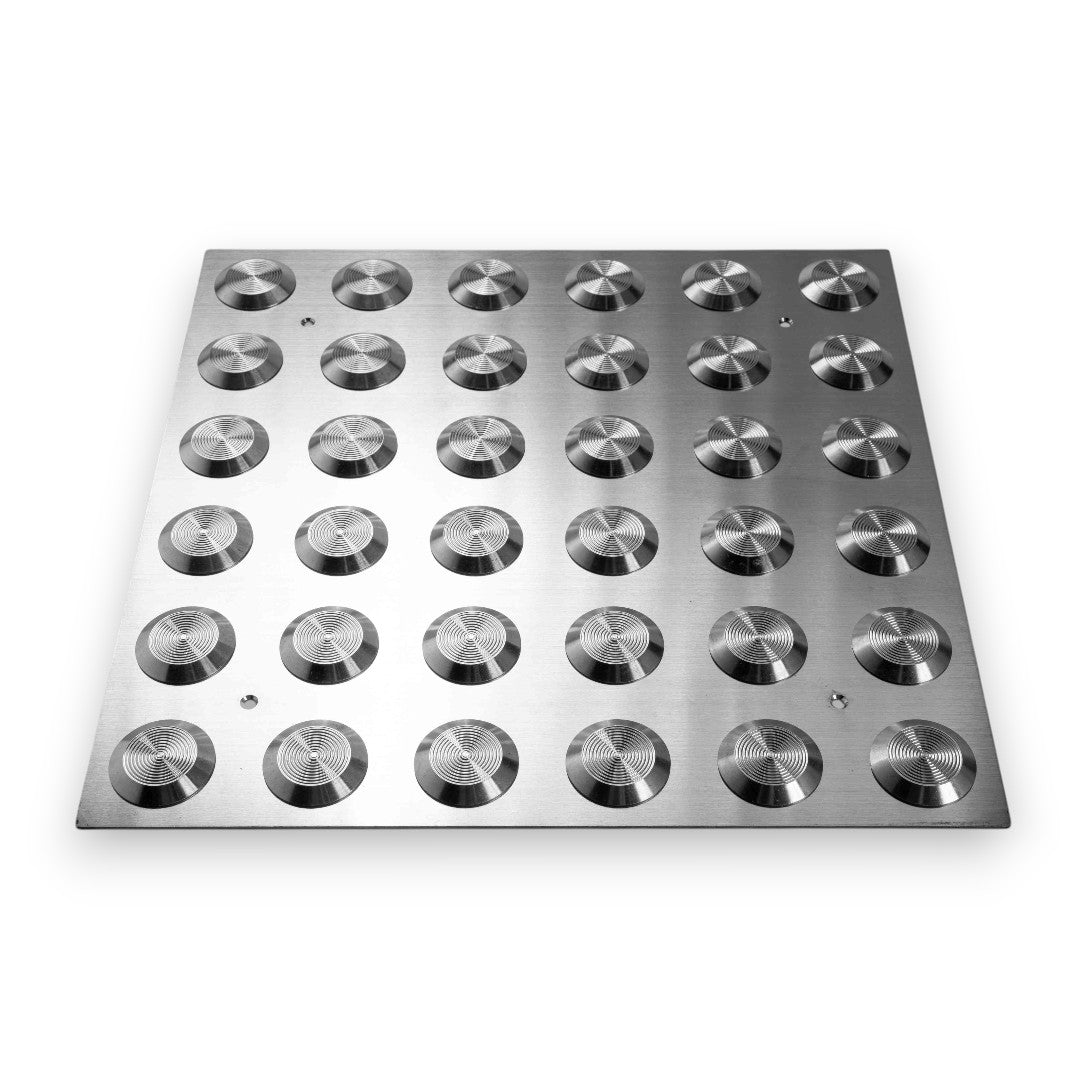

Stainless Steel Tactile Indicator Plate – 300x300mm. Unlike individual studs, this plate delivers full coverage in a single piece, making it faster to install while maintaining a polished and professional look.
Constructed from 316 marine-grade stainless steel, it combines strength, slip resistance, and modern style. Its compact 300x300mm size is ideal for targeted installations such as stair landings, lift entries, and building access points.
The tile is P5 slip rated and fully AS/NZS 1428.4:2009 compliant, ensuring both safety and long-term reliability in high-traffic public and commercial environments.
Key Features:
Full tactile coverage in a single 300x300mm plate.
316 stainless steel for maximum durability.
Slip rating P5 – excellent traction in all conditions.
Quick installation with 4 countersunk holes for fast, flush mounting.
Suitable for indoor and outdoor use in high-traffic zones.
Specifications:
Material: 316 Stainless Steel
Size: 300 x 300mm
Plate Thickness: 1.75mm
Raised Dome: 5mm
Total Thickness: 6.75mm
Weight: 3kg per plate
Fixings: 4 included per tile
Applications:

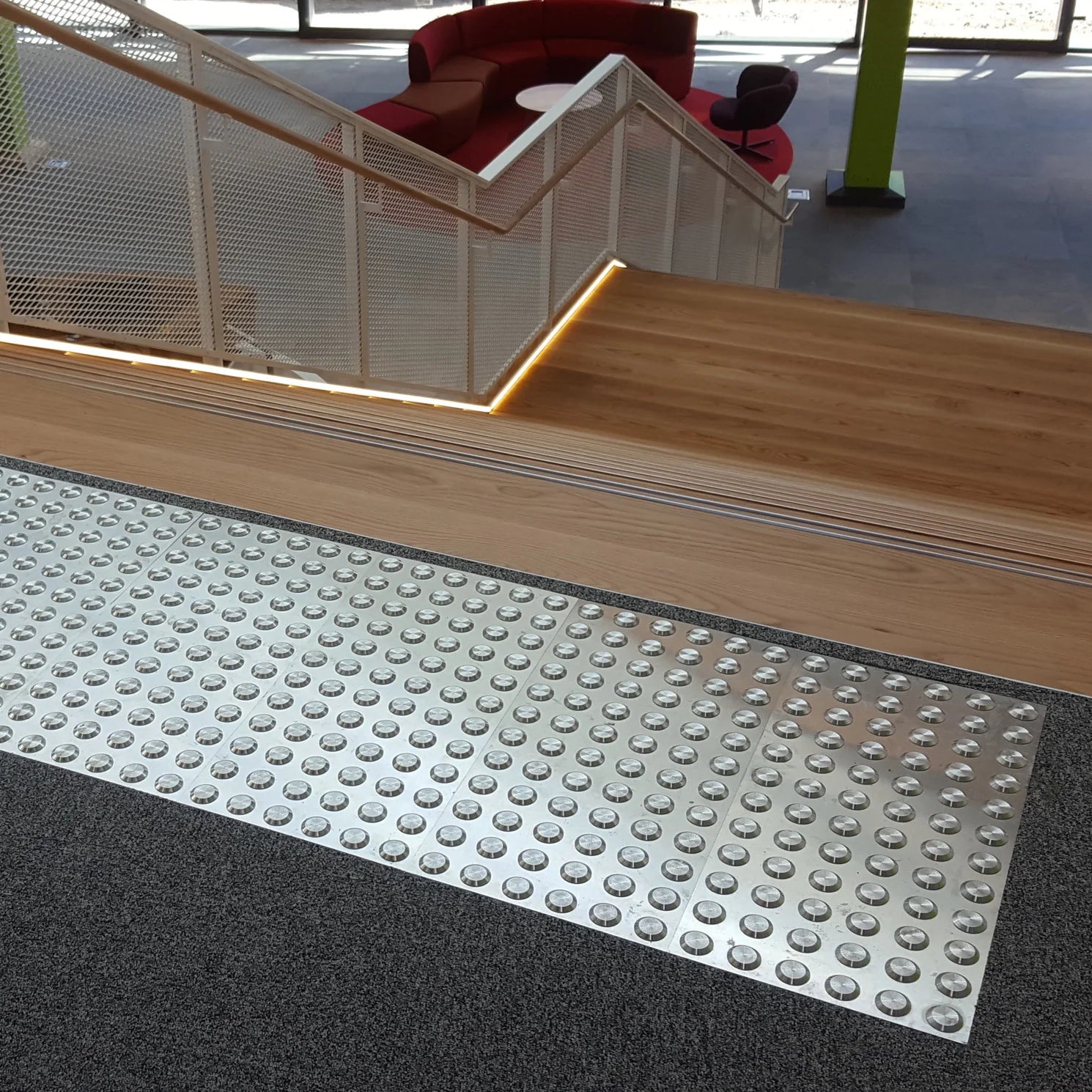

Stair landings and ramps – provide clear hazard warnings.
Transport hubs – bus, rail, and ferry platforms.
Commercial entries – office buildings, shopping centres, hotels.
Public walkways & plazas – high-use outdoor access areas.
❓ Product FAQs Click to expand ⌄
Stainless steel tactile indicator plates are used to provide a raised hazard warning surface for accessibility and pedestrian safety. They are commonly installed near stairs, ramps, entrances, walkways, crossings, platforms and public access areas where tactile ground surface indicators are required for people who are blind or vision impaired.
Tactile indicator plates are a practical option when you want a pre-formed panel with consistent stud spacing and a durable metal finish. They can be faster to position than individual studs and provide a more solid, long-lasting finish than adhesive mats. They are suitable for commercial, public access and workplace projects where durability, appearance and installation consistency are important.
Before installation, check the surface material, fixing method, plate layout, slip resistance and relevant Australian accessibility requirements. The installation area should be clean, stable and suitable for the selected fixing method. For public or commercial access projects, confirm the required placement and compliance requirements before ordering or installation.
