SAFETY ELITE

Tactile Indicator 3M Adhesive – Stainless Steel with Black Carborundum Insert

Tactile Indicator 3M Adhesive – Stainless Steel with Black Carborundum Insert

SF1623M

GST Exempt
$1.39 AUD
$2.50 AUD $1.39 AUD
On Sale Sold out
Shipping can be calculated in cart page Shipping Policy

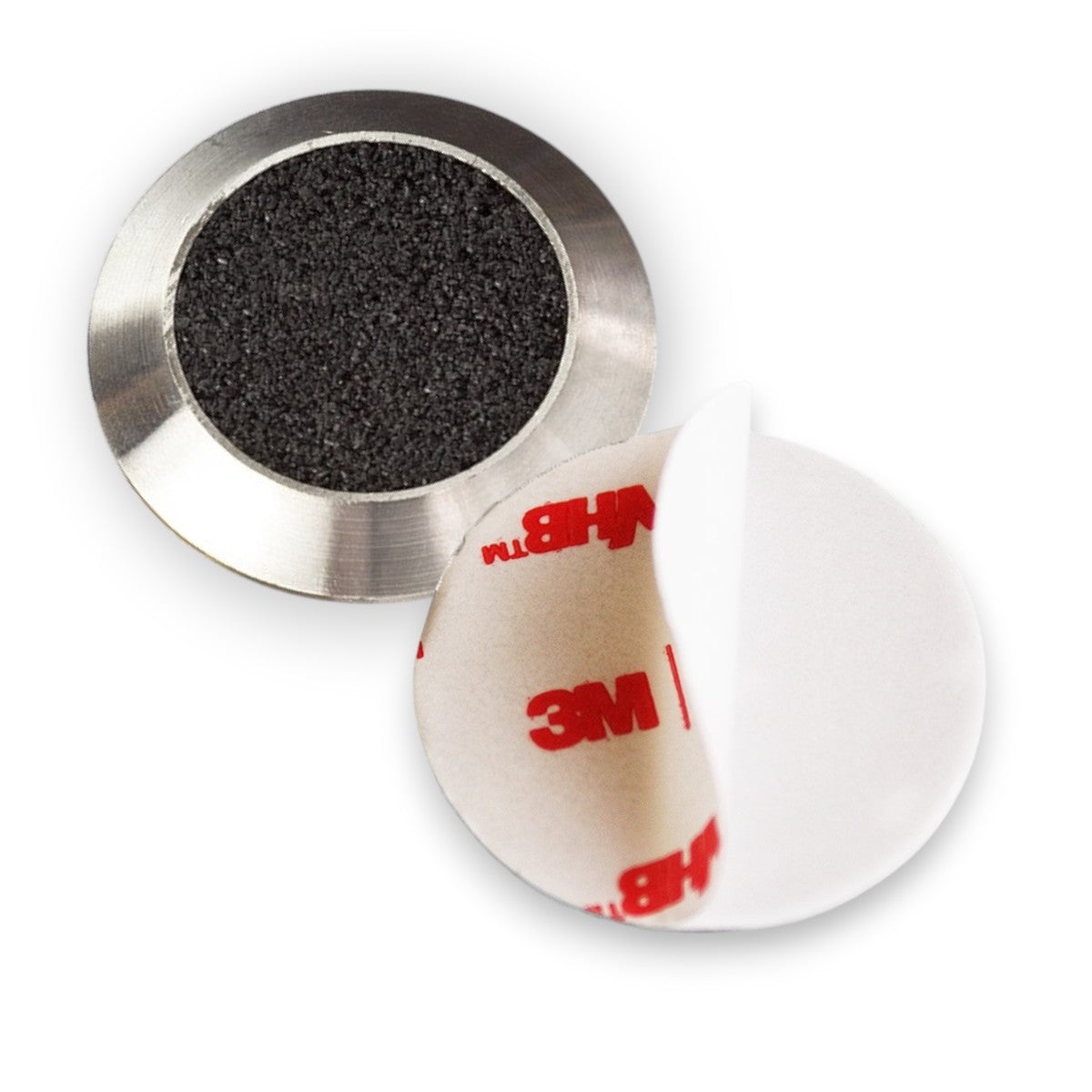

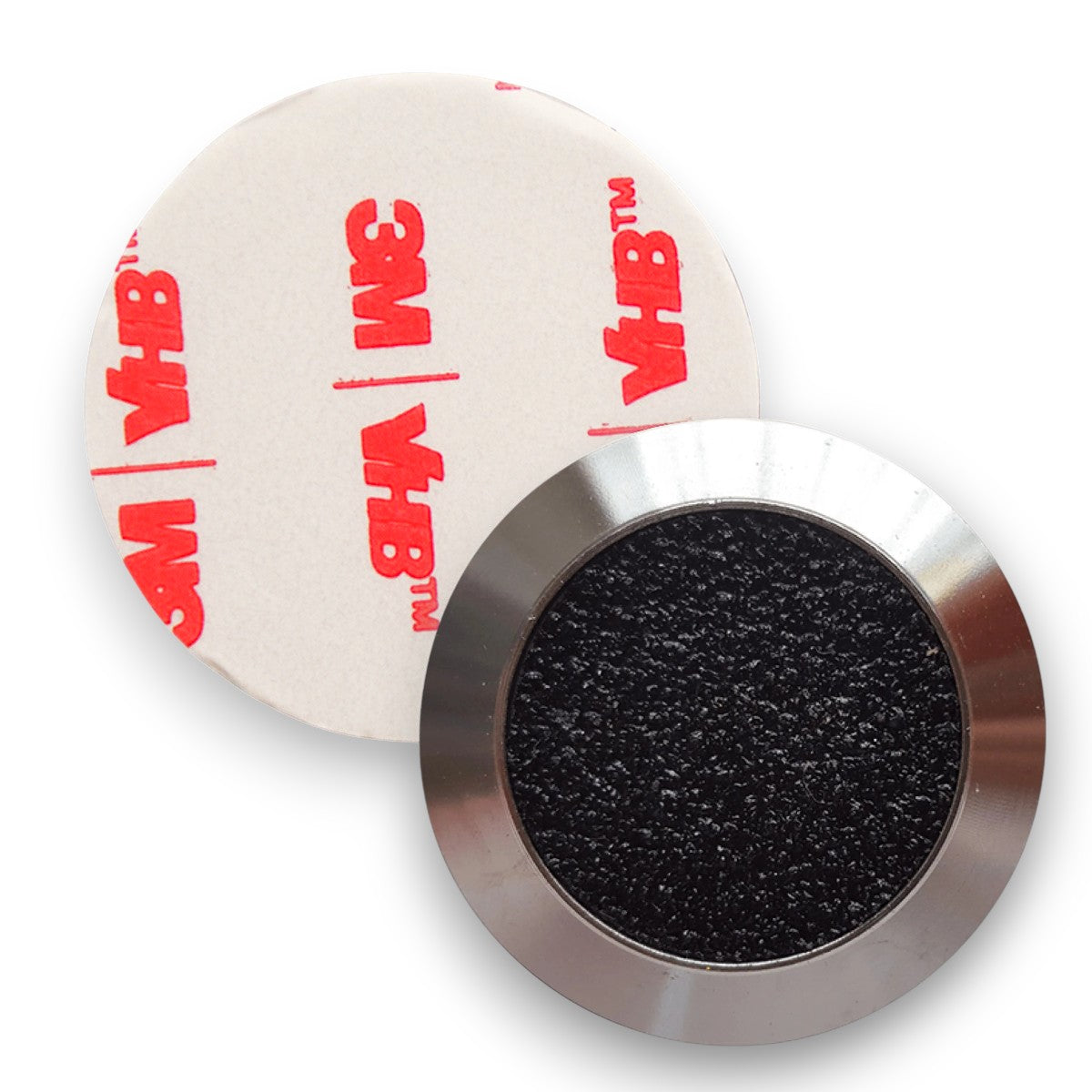

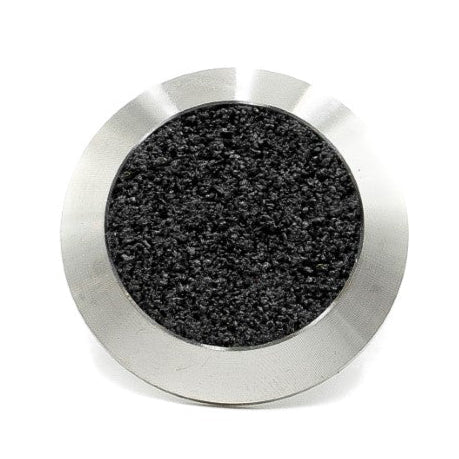

The Stainless Steel Tactile Indicator Stud with Black Carborundum Insert (3M Adhesive Back) is a premium solution for accessibility and safety. Made from 316 marine-grade stainless steel, it delivers long-term durability, while the black carborundum insert provides high contrast for enhanced visibility and tactile feedback.

Designed with a 3M self-adhesive backing, these studs are easy to install — simply peel and stick using a flat-back tactile template to ensure proper placement and compliance with standards. This makes them especially suitable for projects where drilling is not practical or quick deployment is needed.

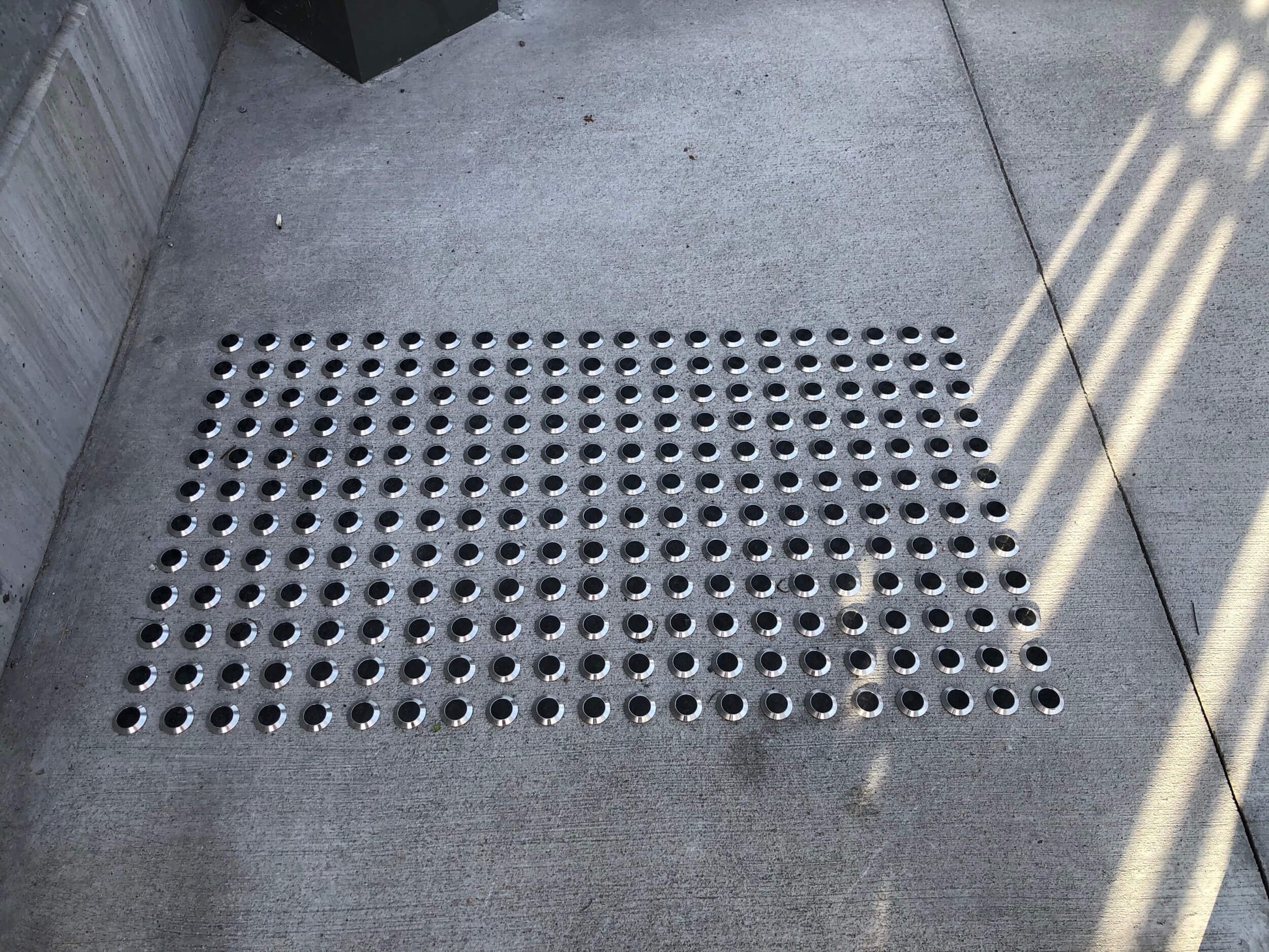

Compliant with AS/NZS 1428.4.1:2009, these tactile studs are widely used in public transport platforms, commercial car parks, pedestrian crossings, stairways, and ramps to alert visually impaired pedestrians of hazards or points of importance.

Key Features:

316 marine-grade stainless steel with black carborundum insert.

3M adhesive back – peel-and-stick installation (no drilling required).

High-contrast design for improved visibility and detection.

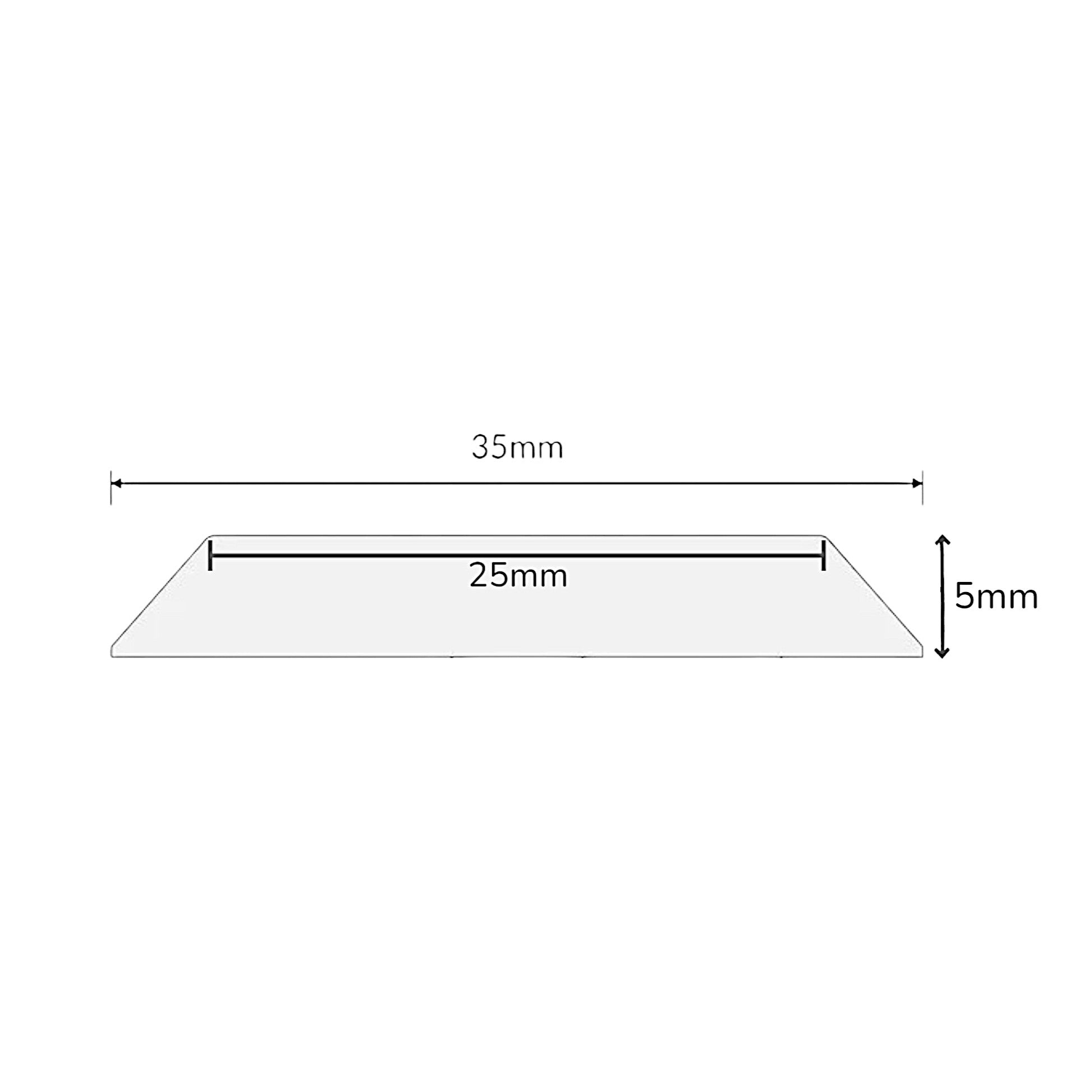

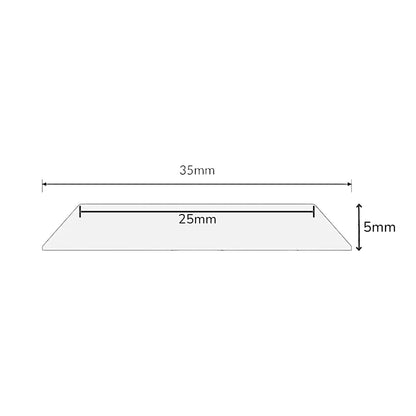

35mm diameter, 5mm height.

Complies with AS/NZS 1428.4.1:2009.

Suitable for indoor and outdoor applications.

Specifications:

Description: 3M peel-and-stick stainless steel stud with black carborundum insert

Material: 316 Stainless Steel + Black Carborundum Insert

Diameter: 35mm

Height: 5mm

Installation: 3M Self-Adhesive Backing

Coverage: 400 studs per m² (e.g. 12.5 m² = 5000 studs)

Applications:

Railway Platforms & Wharves – hazard warnings to prevent serious falls.

Car Parks & Driveways – indicate vehicular crossing paths.

Stairways & Ramps – mark tops and bottoms for safety.

Pedestrian Crossings – define safe travel paths and direction changes.

Bus Stops & Tram Stops – mark important points of access.

📄 Download Data Sheet (PDF)

❓ Product FAQs Click to expand ⌄
What are these tactile indicator studs used for?

These tactile indicator studs are used to create tactile ground surface indicators for accessibility, pedestrian guidance and hazard warning. They are commonly installed near stairs, ramps, building entrances, walkways, crossings, platforms and public access areas where a raised surface warning is needed for people who are blind or vision impaired.

Why choose individual tactile studs instead of tactile mats?

Individual tactile studs are often chosen for projects that need a more permanent, durable and professional finish. They can be installed in a set layout to suit the site requirements and are commonly used on concrete, tile, stone or other suitable hard surfaces. Tactile mats may be preferred for faster installation, while individual studs usually provide a cleaner architectural finish.

What should I check before installing tactile indicator studs?

Before installation, check the surface material, fixing method, spacing, layout, slip resistance and relevant Australian accessibility requirements. The installation surface should be clean, stable and suitable for the selected fixing method. For commercial or public access projects, it is important to confirm the required layout and compliance requirements before ordering or installation.

🛡️ Product Warranty Click to expand ⌄
This product comes with a 1-year manufacturer warranty against manufacturing defects. The warranty does not cover damage caused by misuse, improper installation, normal wear and tear, or accidental damage.
