Stainless Steel Tactile Indicator Stud – Concentric Ring Design
Stainless Steel Tactile Indicator Stud – Concentric Ring Design
SKU:SF101-E
Couldn't load pickup availability

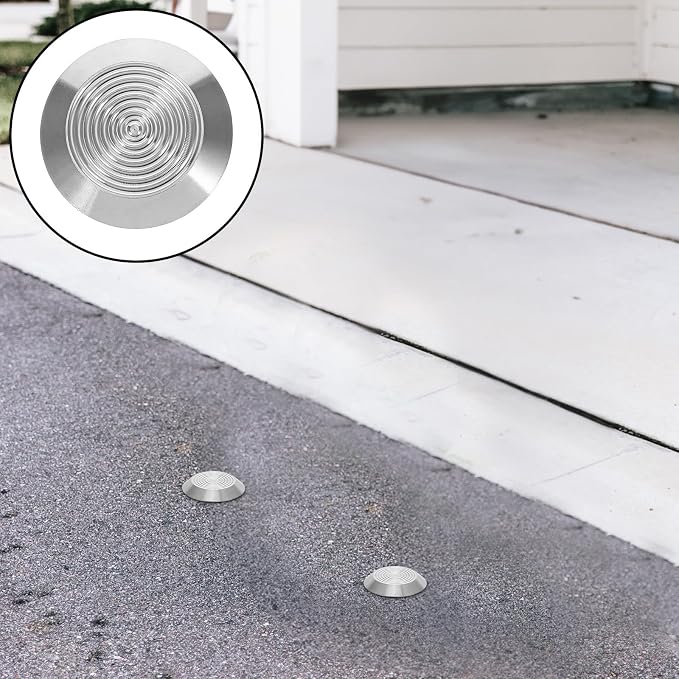

The Stainless Steel Tactile Indicator Stud is designed to provide a durable and professional solution for tactile ground surface installations in commercial, public and pedestrian access areas.
Featuring a circular concentric-groove surface, the stud provides clear tactile guidance underfoot while maintaining a clean and modern stainless steel appearance. Its individual stud design allows flexible installation across a wide range of surfaces and layouts.
Suitable for use at building entrances, ramps, stair approaches, pedestrian pathways, shopping centres, offices and other public access areas.
Key Features
- 316 marine-grade stainless steel – corrosion and weather resistant
- AS/NZS 1428.4.1:2021 compliant
- 400 studs required per m² coverage
- Concentric grooved tactile surface
- Suitable for indoor and outdoor use
- Suitable for concrete, stone, tiles and other solid surfaces
- Ideal for commercial and public access applications
Specifications
| Specification | Details |
|---|---|
| Product Type | Tactile Indicator Stud |
| Material | Stainless Steel 316 |
| Colour | Silver |
| Head Diameter | 35mm |
| Tactile Height | 5mm |
| Shaft Length | 13mm |
| Recommended Drill Bit | 6mm |
| Compliance | AS/NZS 1428.4.1:2021 |
| Slip Rating | R12 |
| Sale Unit | Sold individually |
Installation
Mark the required stud positions using a suitable tactile indicator installation template. Drill the fixing holes using a 6mm drill bit, remove all dust and debris, and secure each stud with an appropriate construction adhesive suitable for the installation surface.
Installation spacing and layout should follow the relevant accessibility requirements for the project.
❓ Product FAQs Click to expand ⌄
These tactile indicator studs are used to create tactile ground surface indicators for accessibility, pedestrian guidance and hazard warning. They are commonly installed near stairs, ramps, building entrances, walkways, crossings, platforms and public access areas where a raised surface warning is needed for people who are blind or vision impaired.
Individual tactile studs are often chosen for projects that need a more permanent, durable and professional finish. They can be installed in a set layout to suit the site requirements and are commonly used on concrete, tile, stone or other suitable hard surfaces. Tactile mats may be preferred for faster installation, while individual studs usually provide a cleaner architectural finish.
Before installation, check the surface material, fixing method, spacing, layout, slip resistance and relevant Australian accessibility requirements. The installation surface should be clean, stable and suitable for the selected fixing method. For commercial or public access projects, it is important to confirm the required layout and compliance requirements before ordering or installation.
